Home >> Mercury >> 1988 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Diagnostic Trouble Code Priority Index

Diagnostic Trouble Code Priority Index

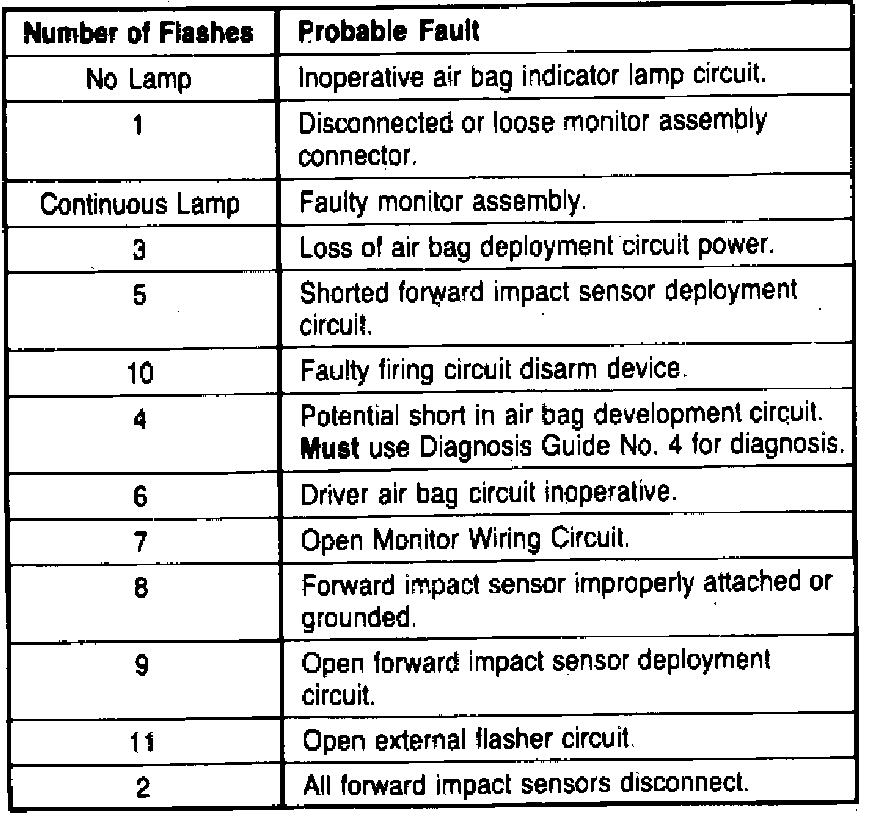

Fig. 7 Fault code priorities chart:
