Mercury
>>
1988
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
J - Fuel Pump Circuit
>>
J23 - J24
J23 - J24

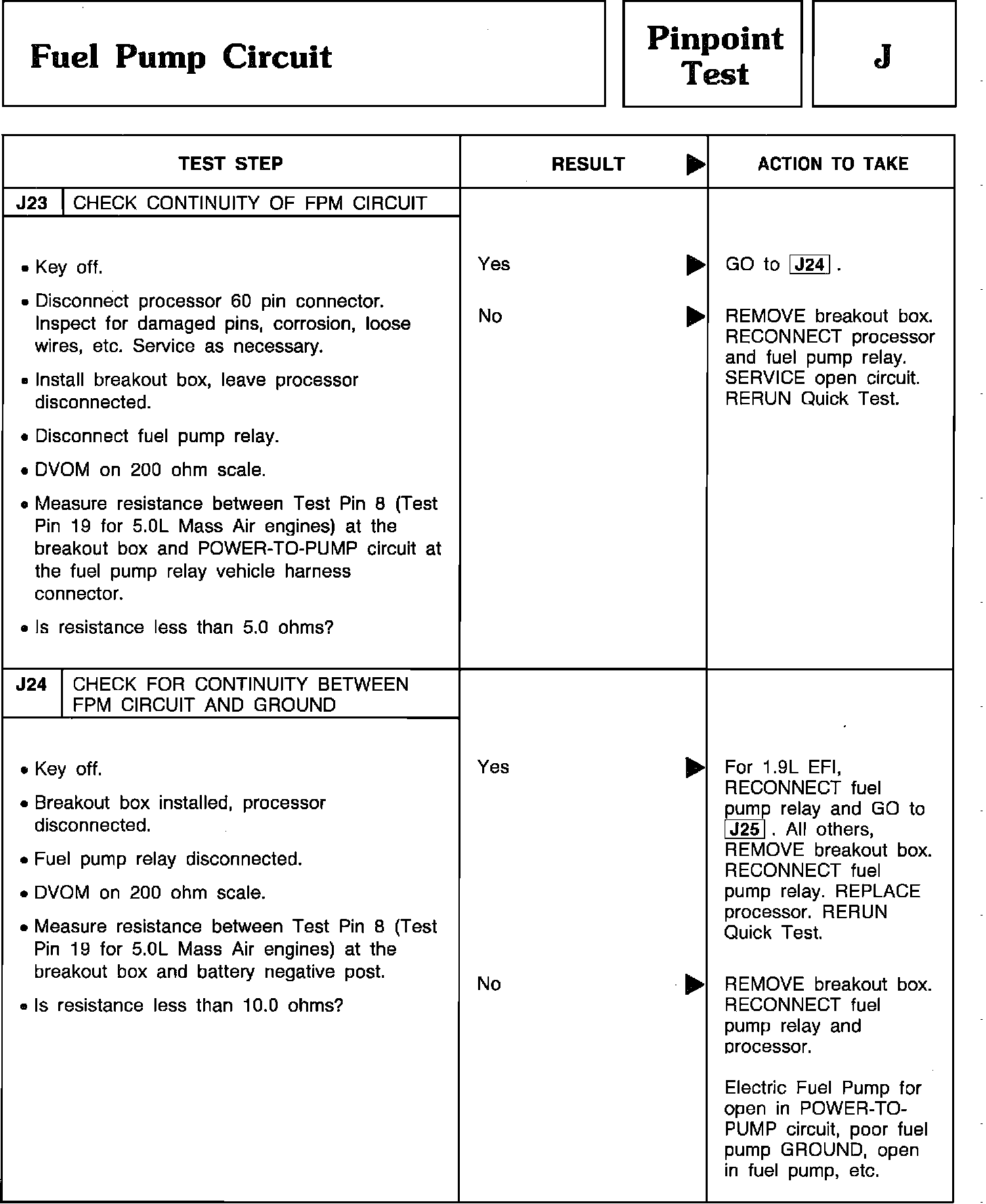

Pinpoint Test J23 & J24 - Fuel Pump Circuit:
