DC - Mass Air Flow (MAF) Sensor
>>
DC - Testing Notes and Schematic
DC - Testing Notes and Schematic

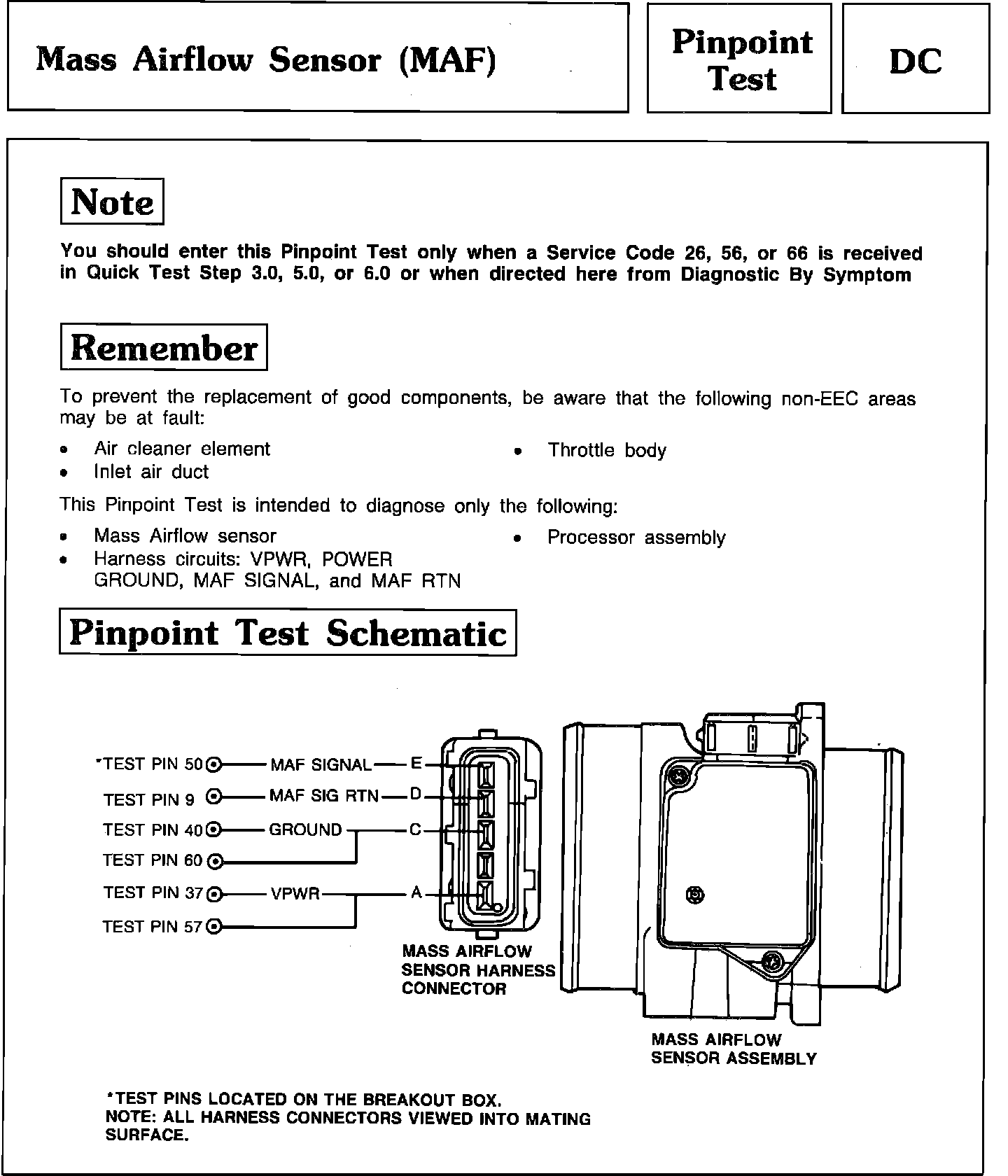

Pinpoint Test DC - Mass Airflow Sensor (MAF):
