Mercury
>>
1988
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
With or Without Low Fuel Warning Lamp
With or Without Low Fuel Warning Lamp

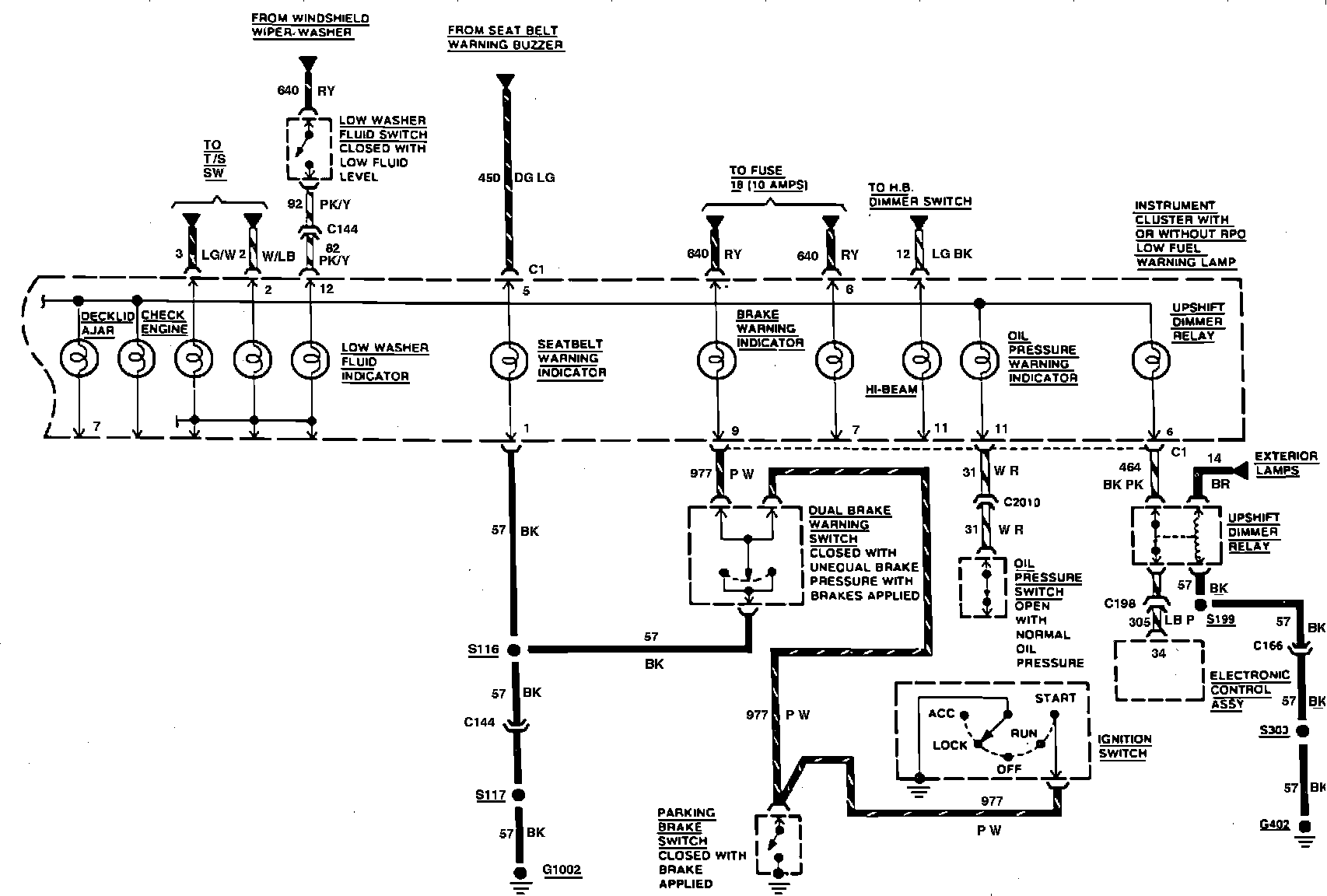

Warning Indicators Wiring Circuit. With Or Without Low Fuel Warning Lamp:
