Base Cluster
Base Cluster

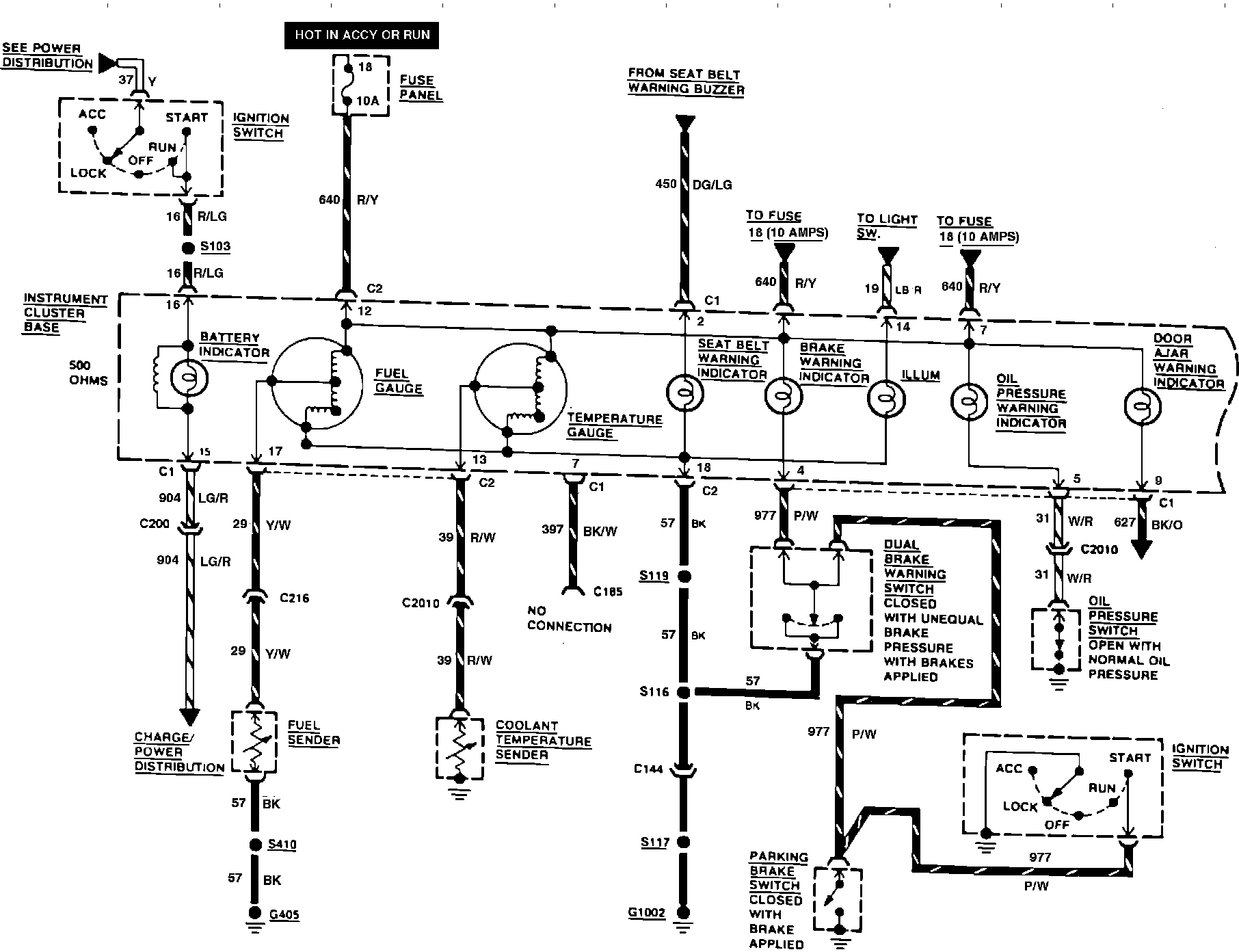

Warning Indicators Wiring Circuit. Base Cluster (Part 1 of 2):
Warning Indicators Wiring Circuit. Base Cluster (Part 2 of 2):
