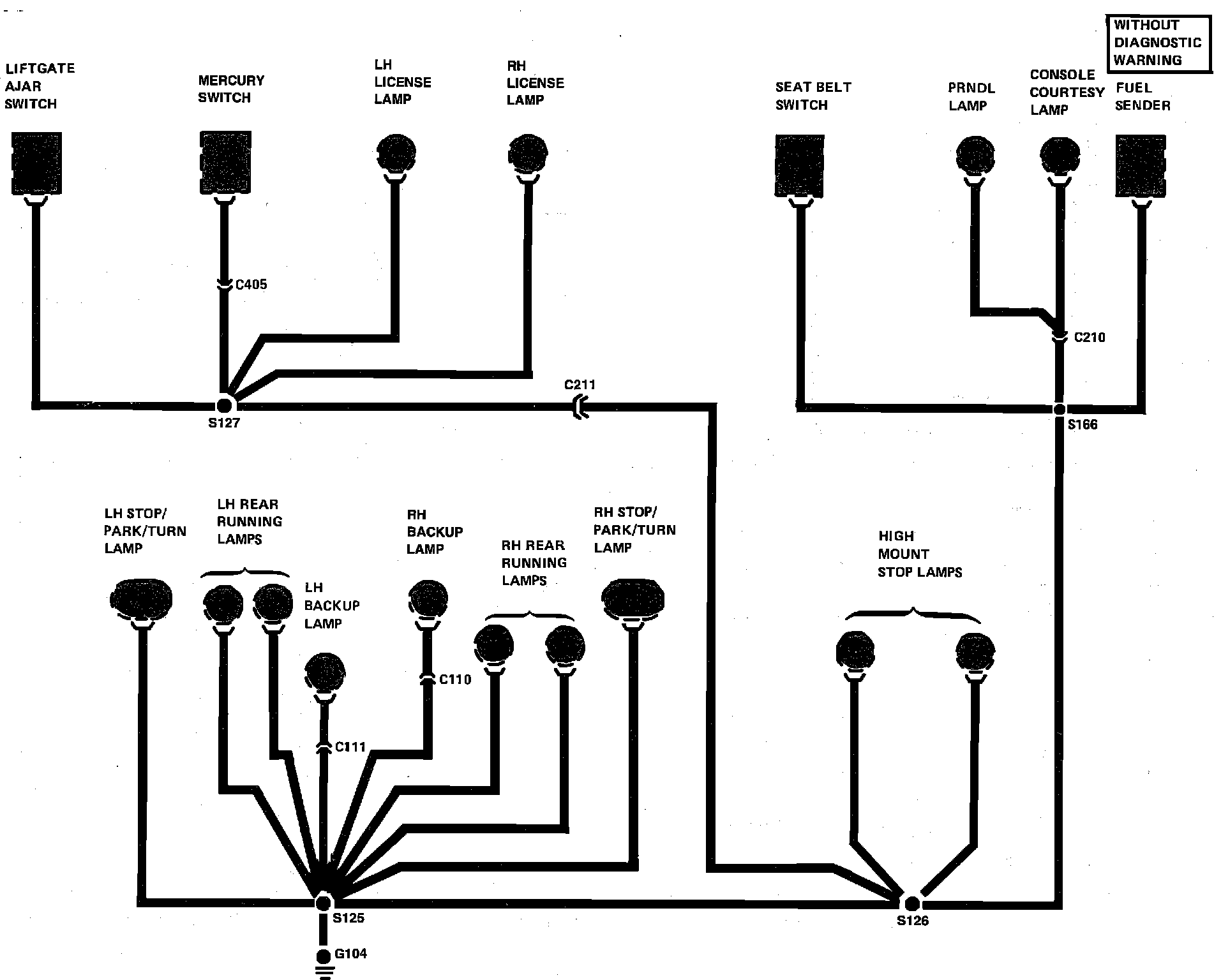

Ground Distribution. G104 (Sable Sedan)
Ground Distribution. G104 (Sable Sedan)
Ground Distribution. G104 (Sable Sedan):
