Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1988
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

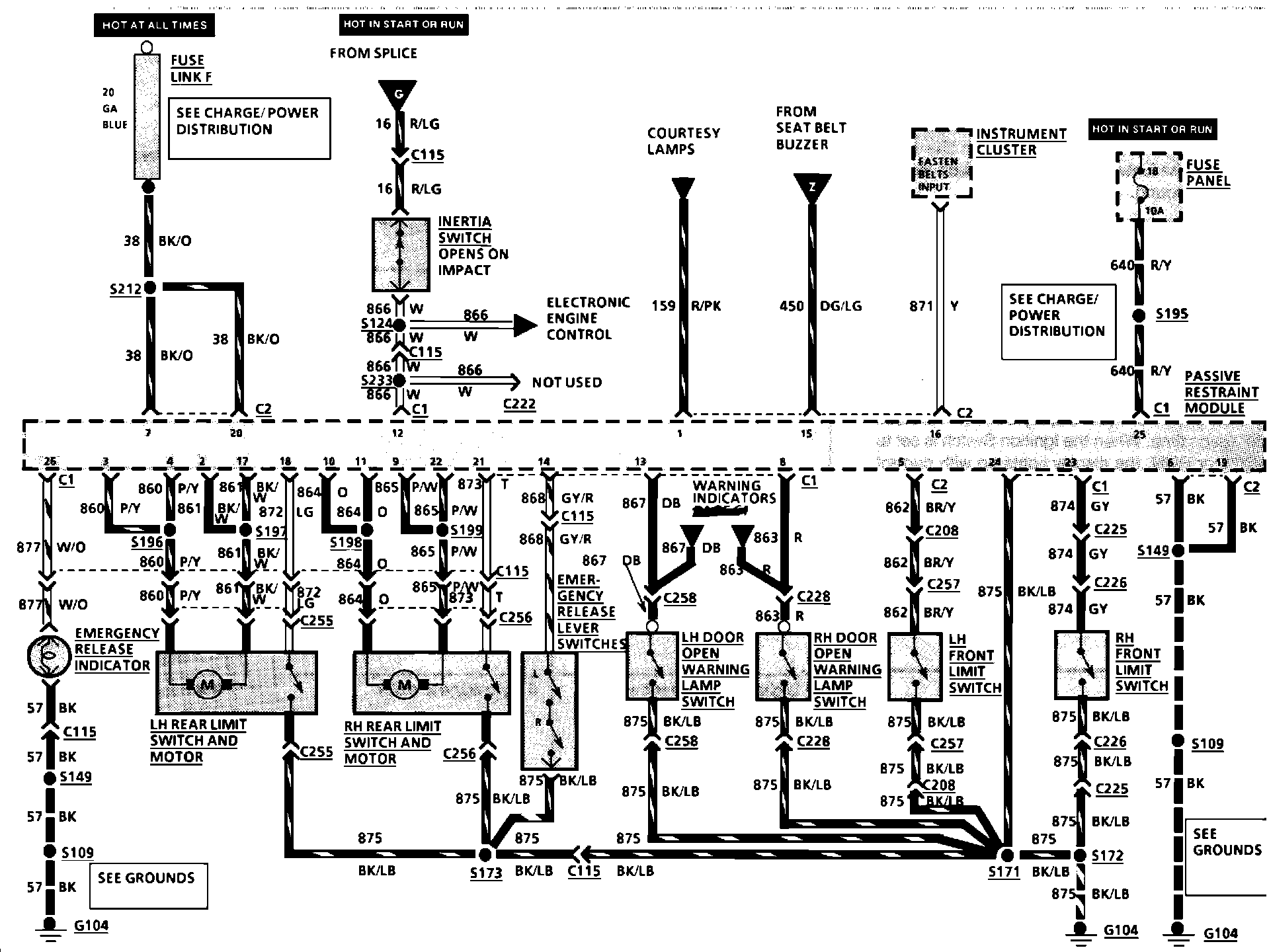

Passive Restraint System Wiring Circuit:

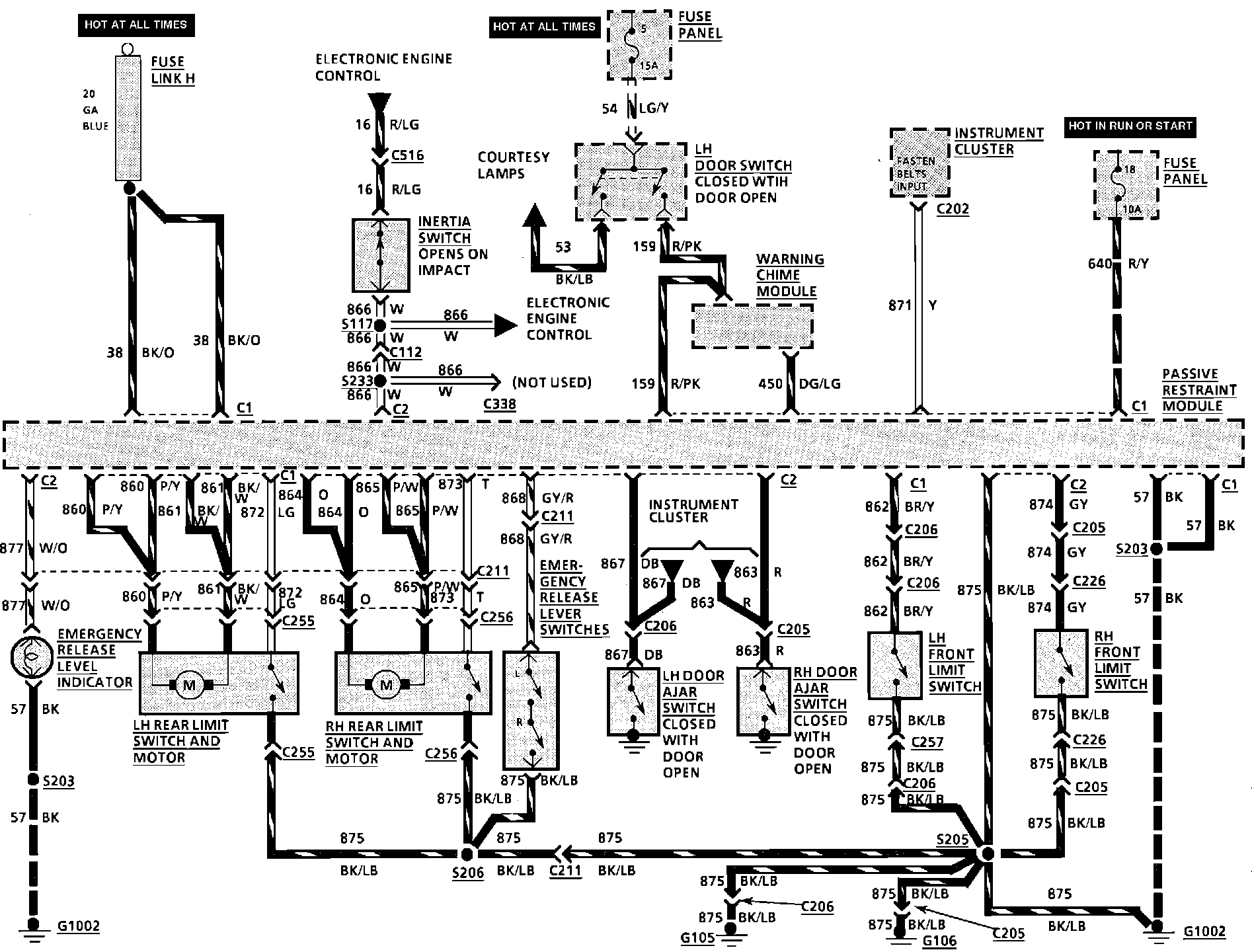

Passive Restraint System Wiring Circuit:
