J - Fuel Pump Circuit
>>

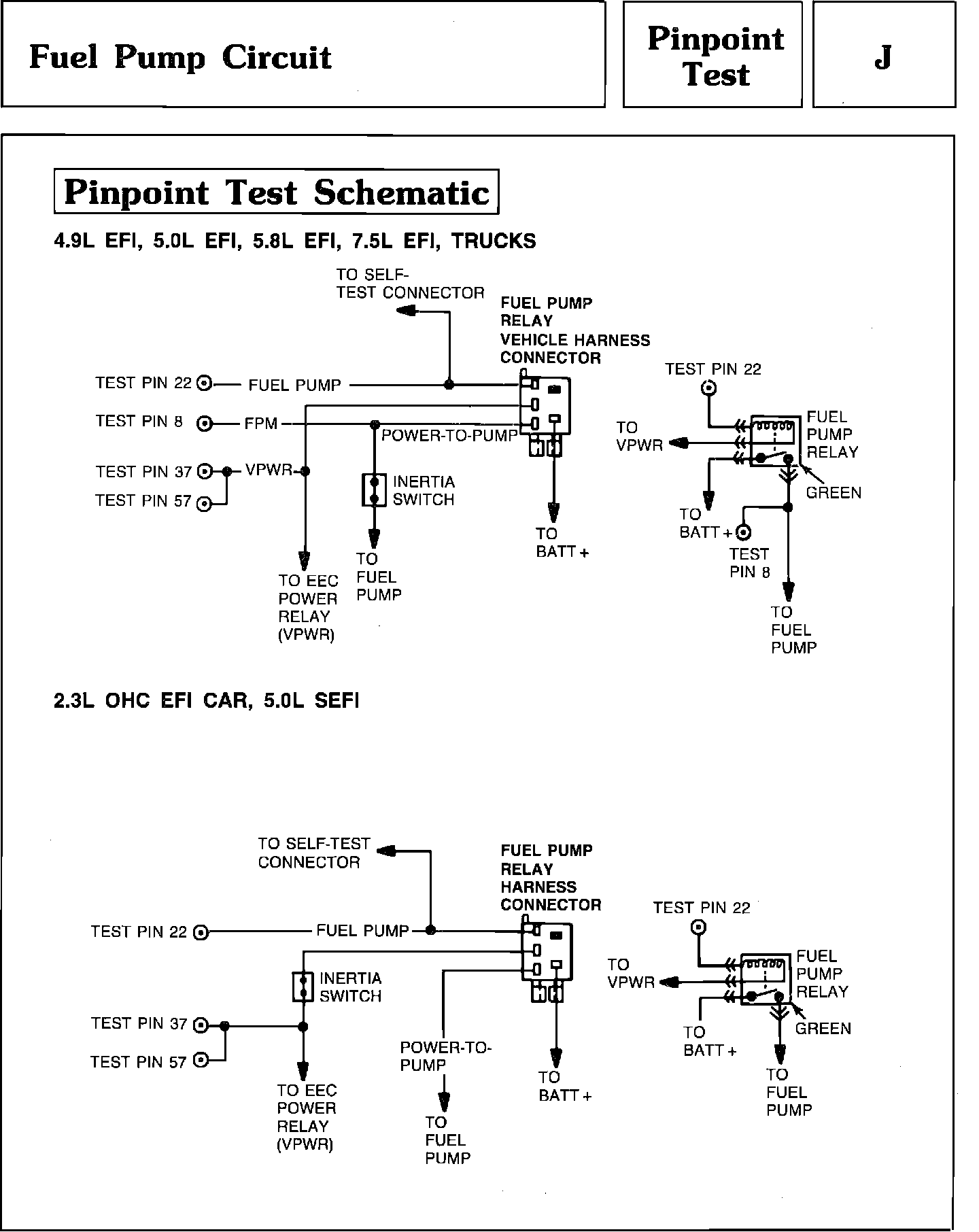

J - Testing Schematic
J - Testing Schematic
Pinpoint Test J - Fuel Pump Circuit:
Pinpoint Test J - Fuel Pump Circuit:
