Mercury
>>
1988
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Front
Front

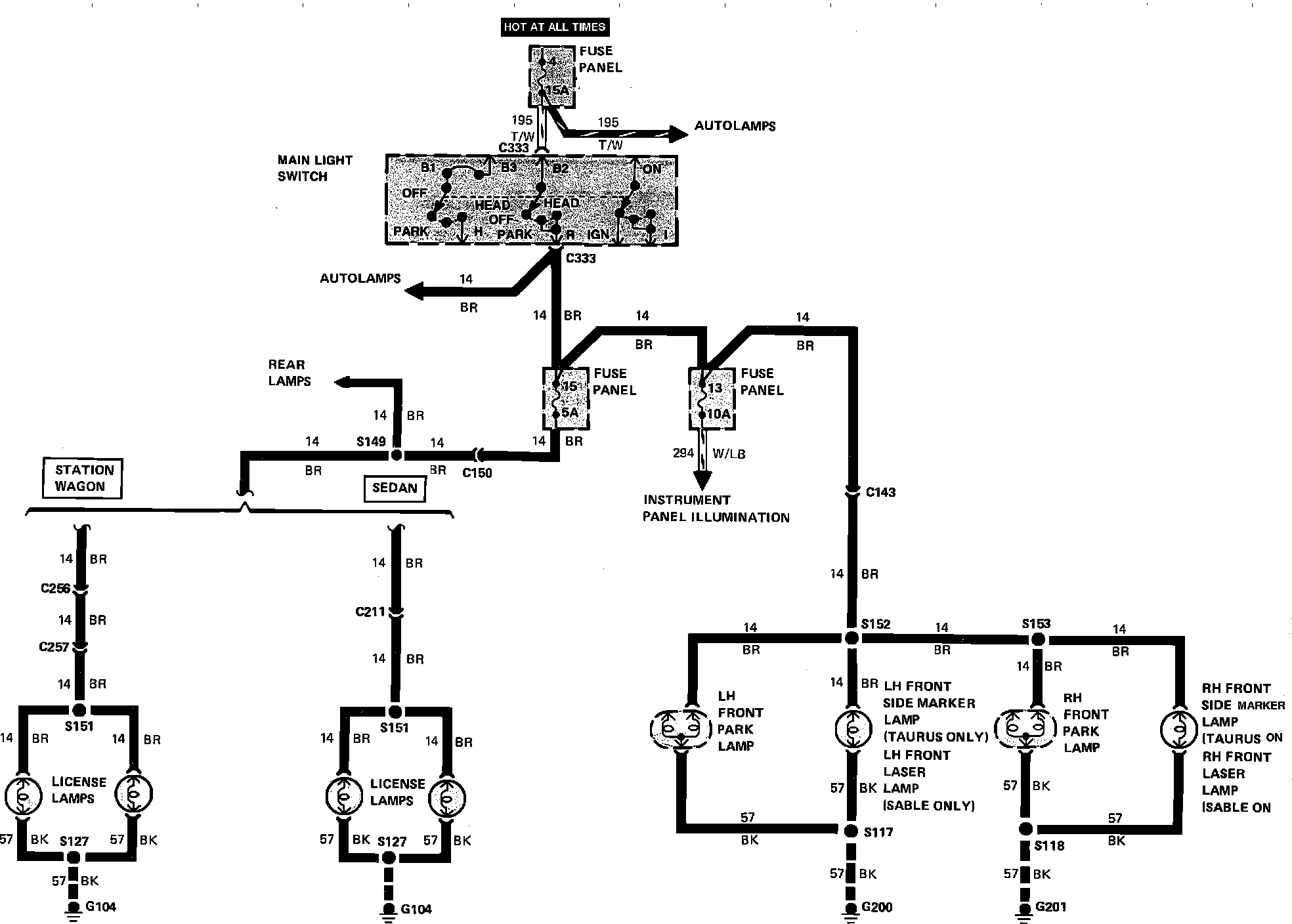

Exterior Lamps Wiring Circuit:
