Home
>>
Mercury
>>
1988
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>

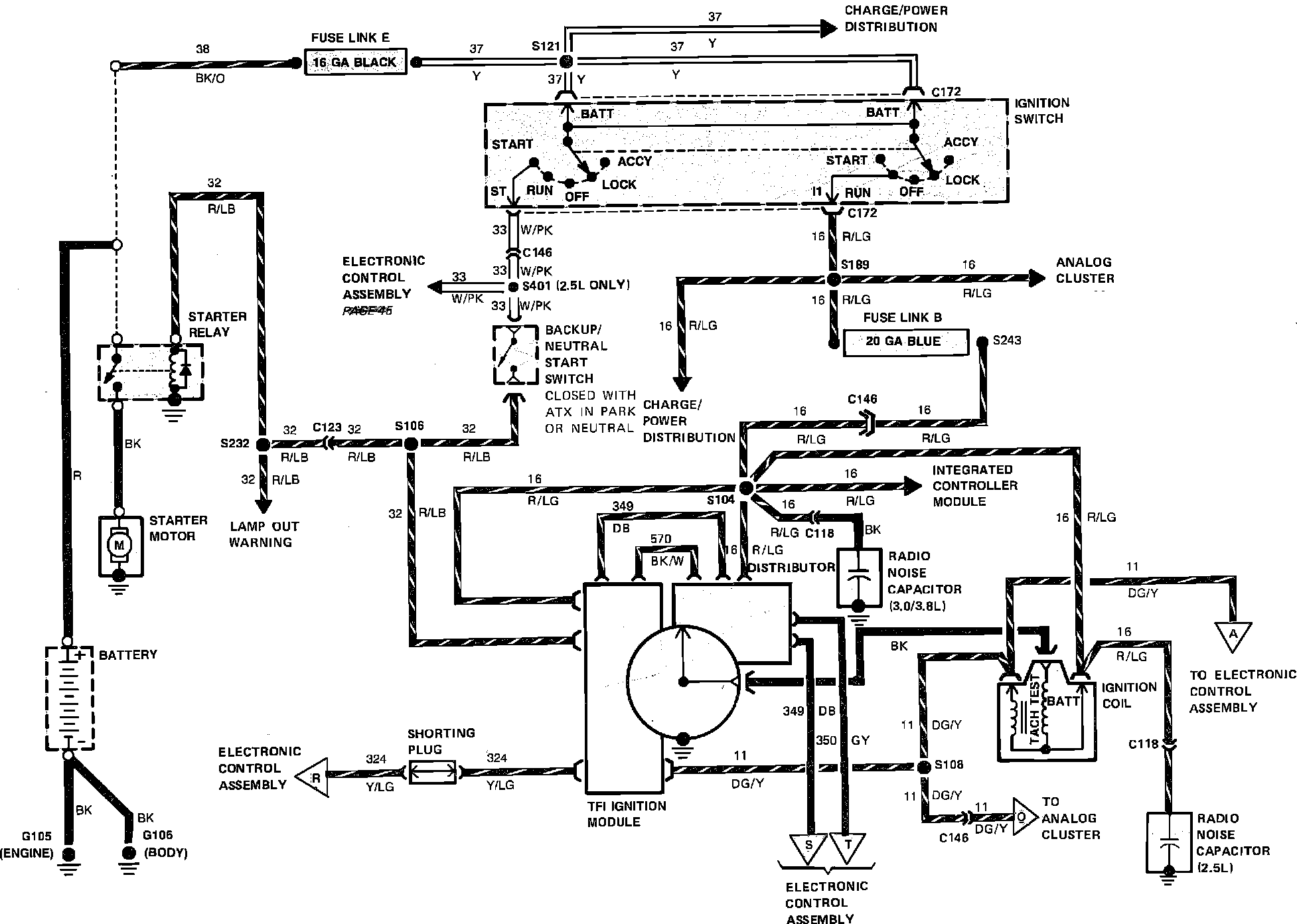

System Diagram
System Diagram
IGNITION & STARTING:
