Home
>>
Mercury
>>
1988
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
System Diagram
System Diagram

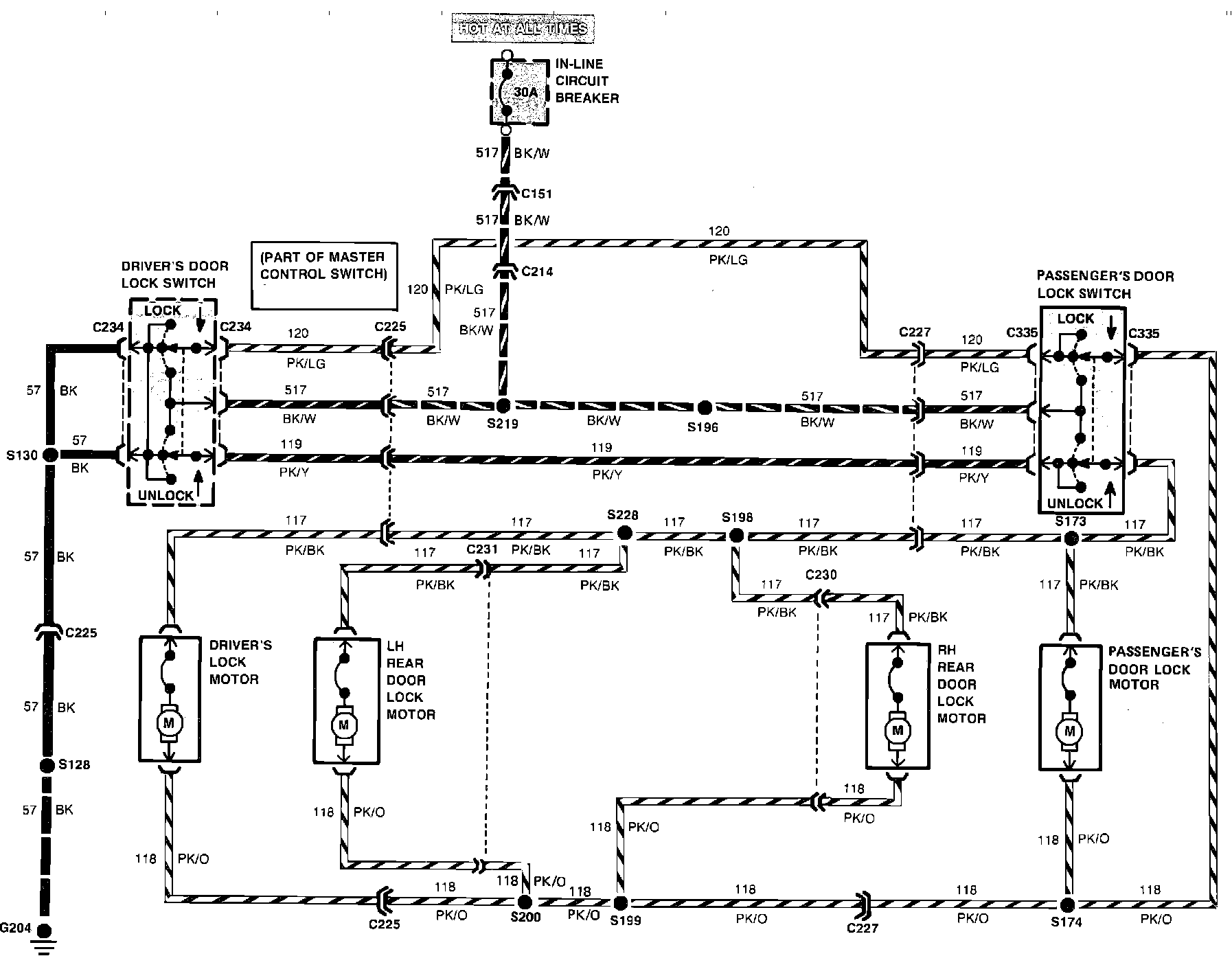

Power Door Lock LWiring Circuit:
