Home >> Mercury >> 1988 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> DH - Throttle Position (TP) Sensor >> DH95 - DH96

DH95 - DH96

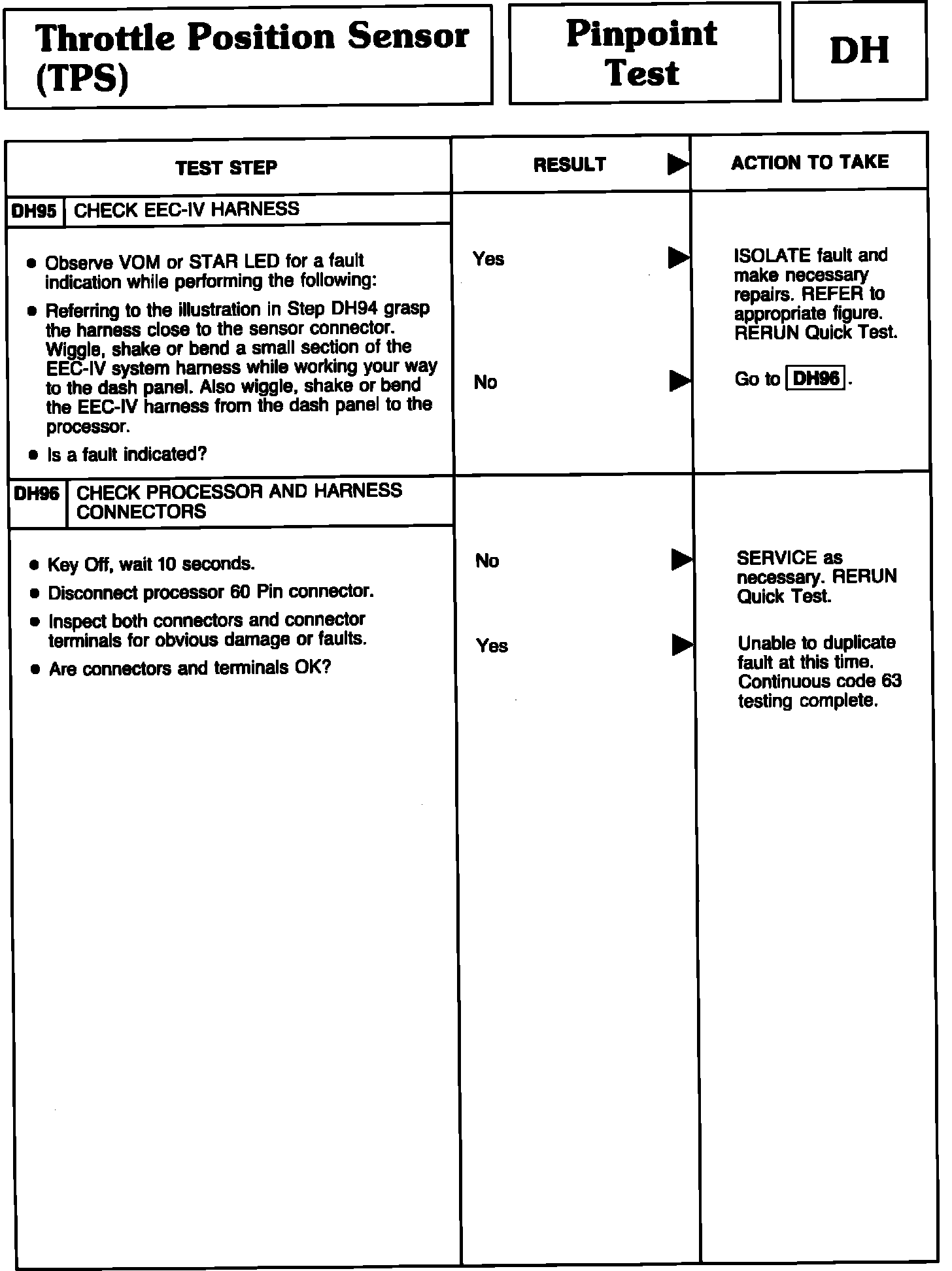

Pinpoint Test D95 - D96. Throttle Position Sensor (TPS):
