Home >> Mercury >> 1988 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Fusible Link >> Locations >> Fuse Link A

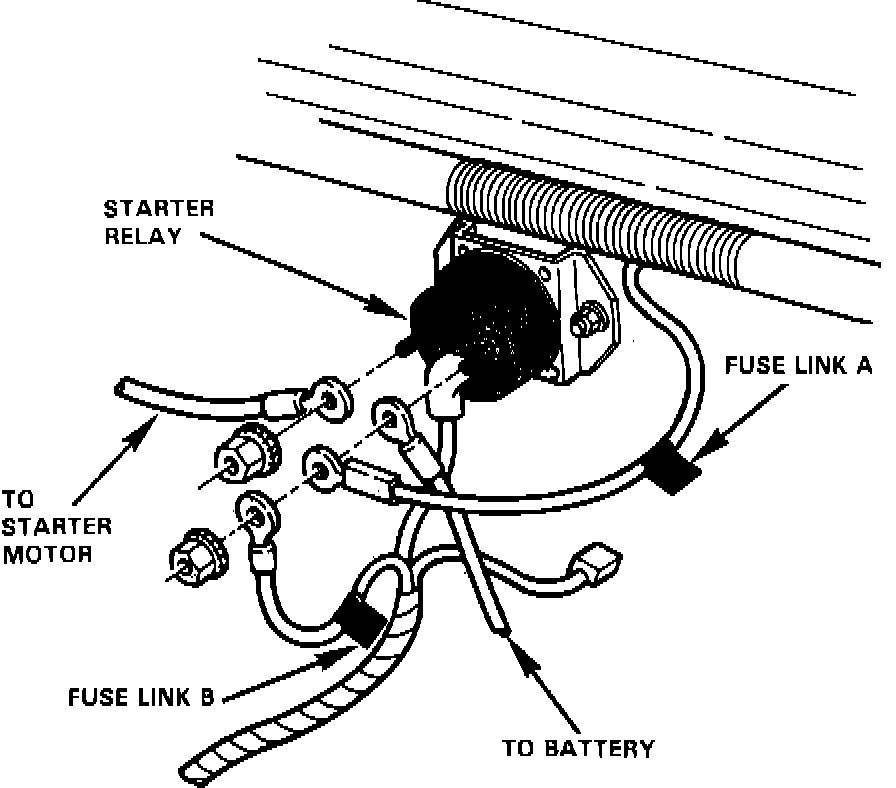

Fuse Link A

LH Fender Apron.:

At Starter Relay

Applicable to: XR4Ti
