Mercury
>>
1988
>>
Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>

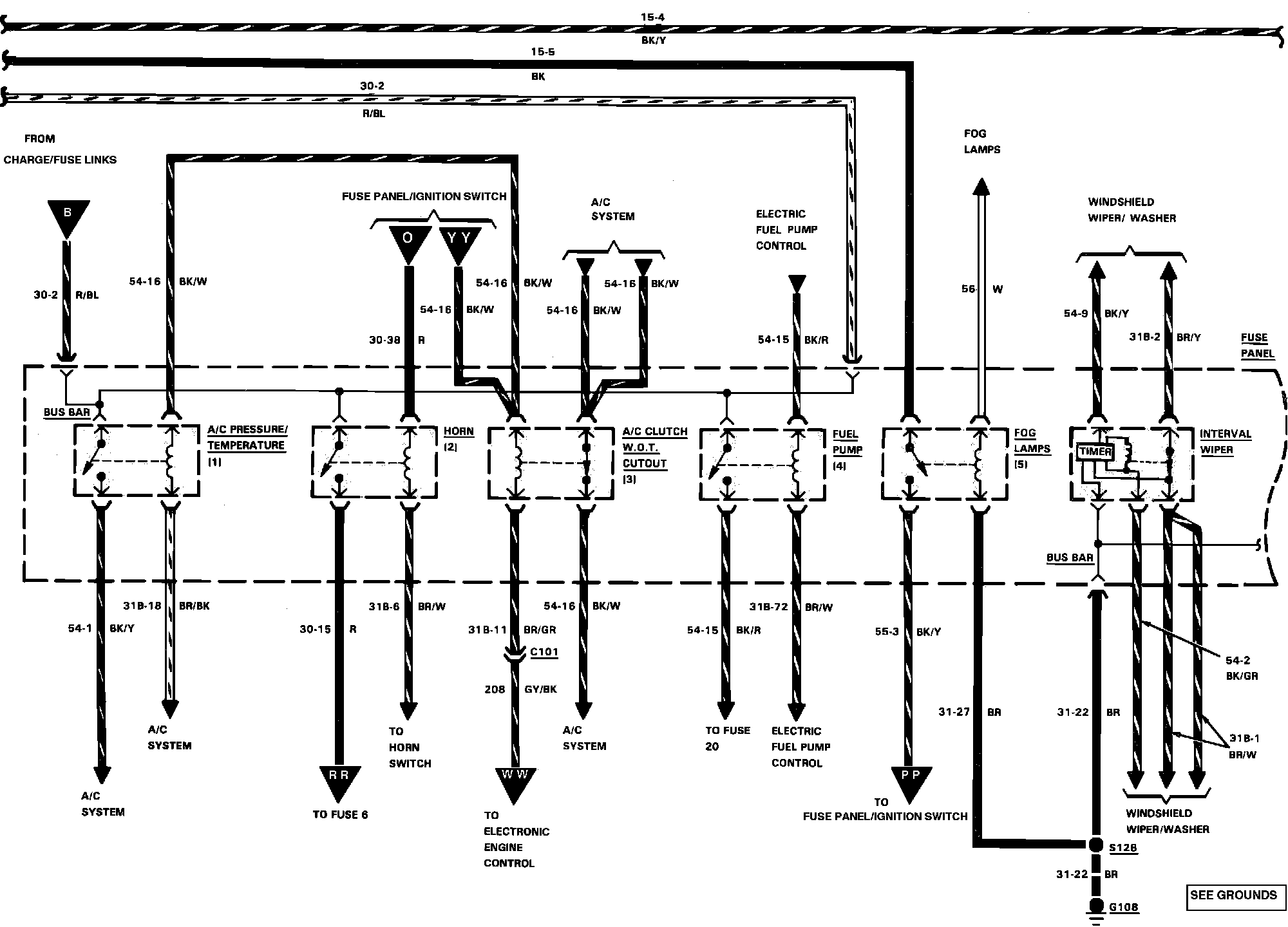

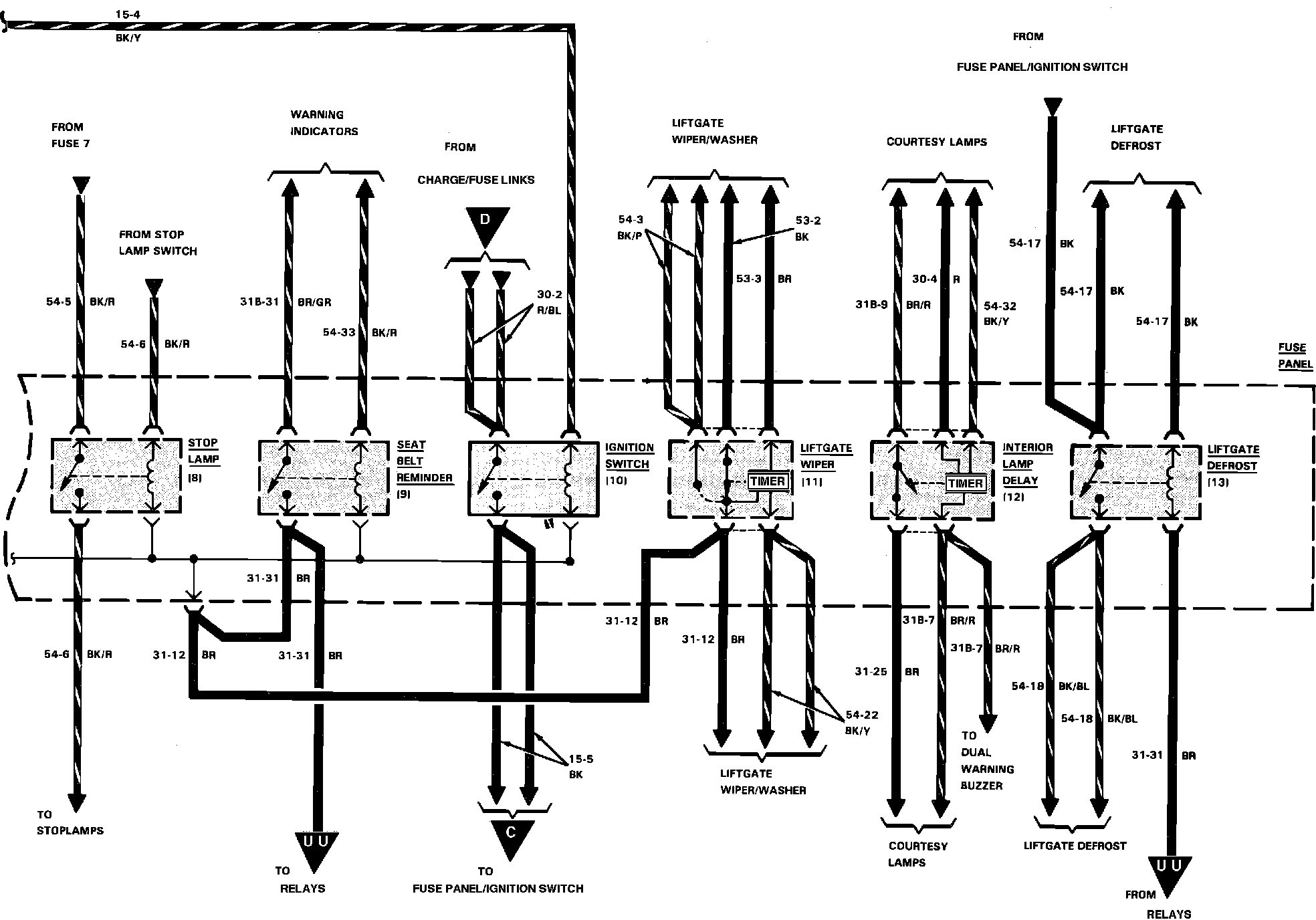

Relays
Relays
Charge/Power Distribution:
Charge/Power Distribution:
