Merkur Xr4ti L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>

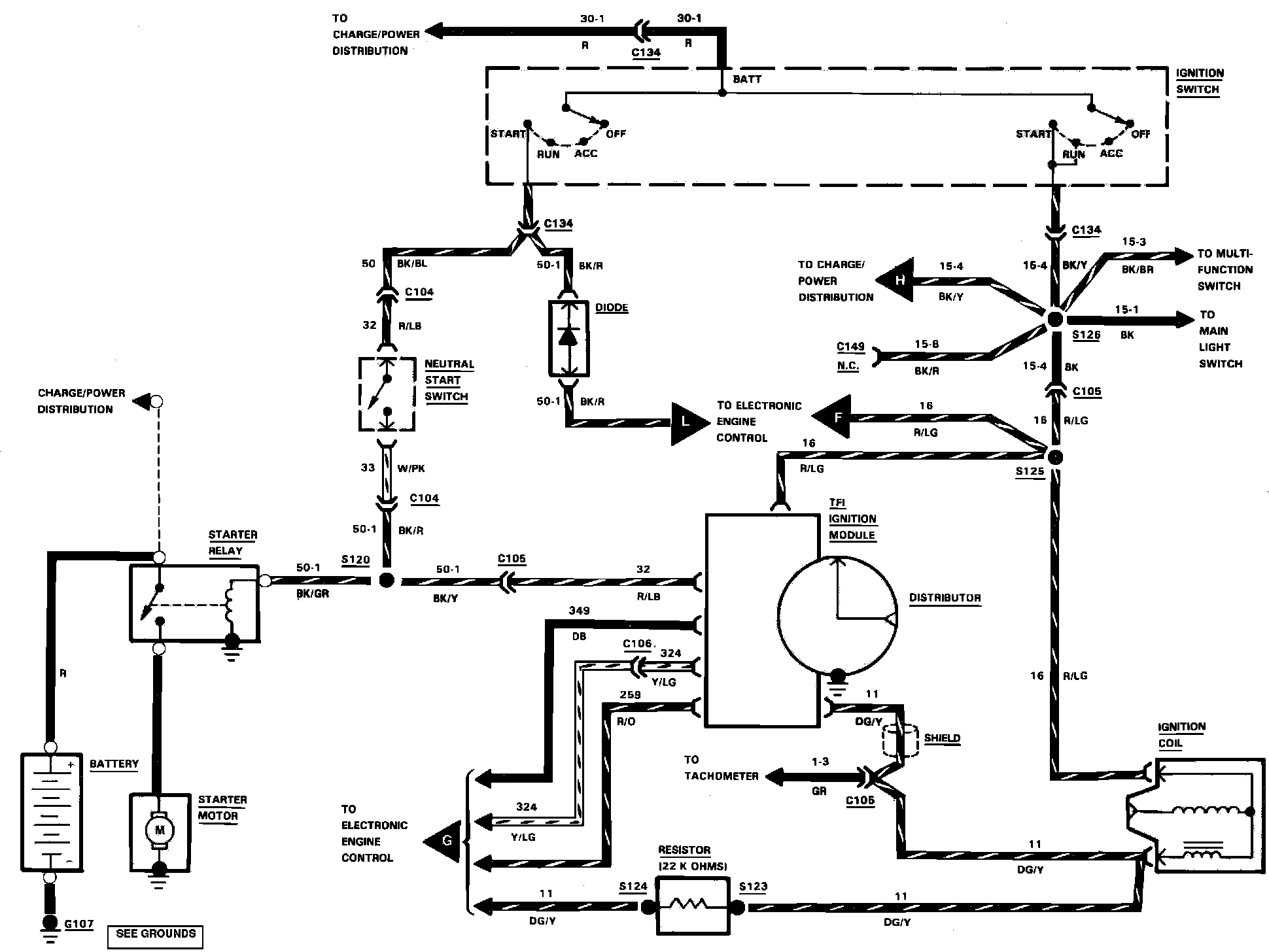

System Diagram
System Diagram
Start/Ignition Systems:
