Speedometer Driven Gear - Application

87ford22

Article No. SPEEDOMETER - DRIVEN GEAR -
87-22-8 SERVICE APPLICATION


MERKUR: 1988 SCORPIO

ISSUE: The speedometer driven gear application varies depending on vehicle axle ratio and transmission type. An incorrect driven gear will cause the speedometer to give wrong readings.

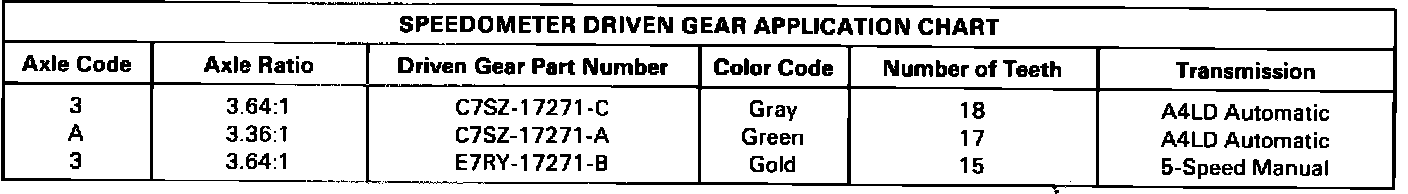

ACTION: If service is required, refer to the speedometer driven gear application chart that follows.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
