Mercury
>>
1988
>>
Merkur Scorpio V6-179 2.9L
>>
Repair and Diagnosis
>>
Technical Service Bulletins
>>
All Technical Service Bulletins
>>
A/C Condenser Fan Diagnosis/Testing - Revised
>>

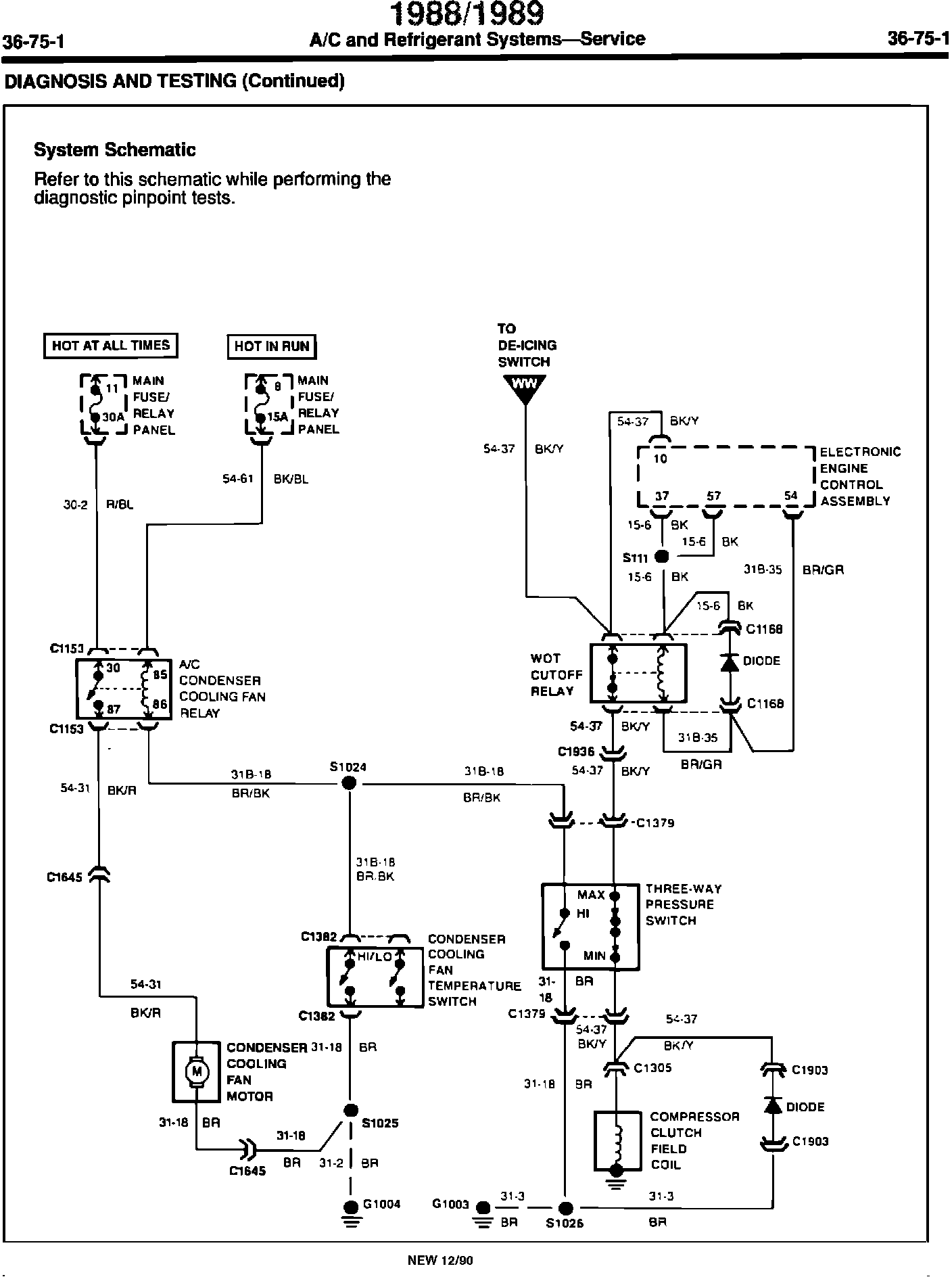

Page 36-75-1, System Schematic
Page 36-75-1, System Schematic
