Attachment I

Attachment I Page 1 of 2



This program consists of a number of service operations for Scorpio vehicles. The items which must be serviced are determined by build dates.

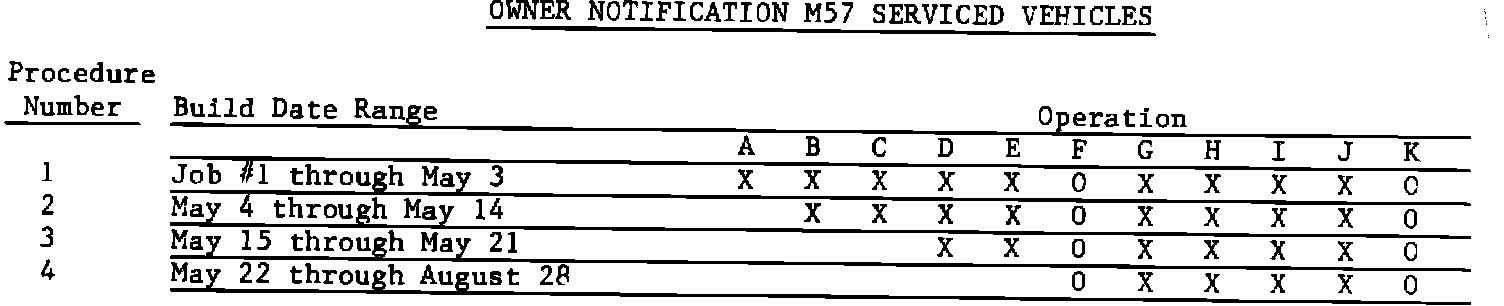

Find the build date code on the left front strut tower and compare it to the chart shown below. (Example: Build date codes 1104 = November 4; 0112 = January 12; 0709 = July 9).

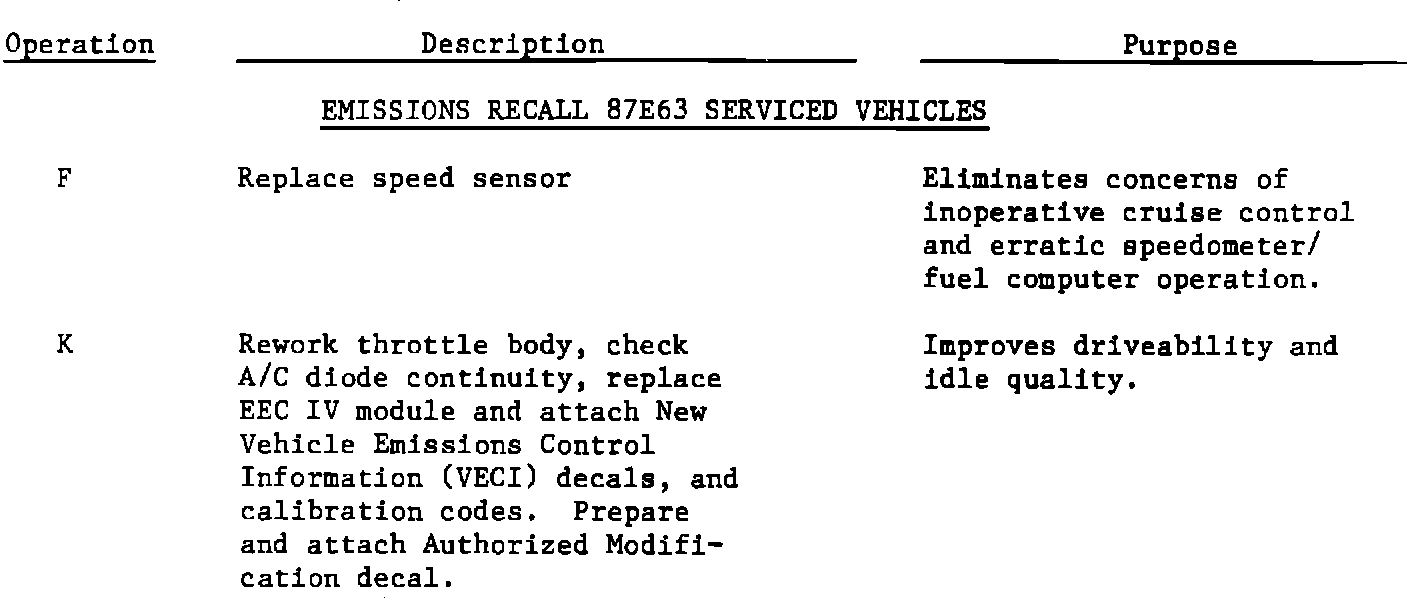

EMISSIONS RECALL 87E63 SERVICED VEHICLES
All of the vehicles returned will require Operations F and K under the Emissions Recall 87E63 service. This service is indicated by an "O" in the above chart.

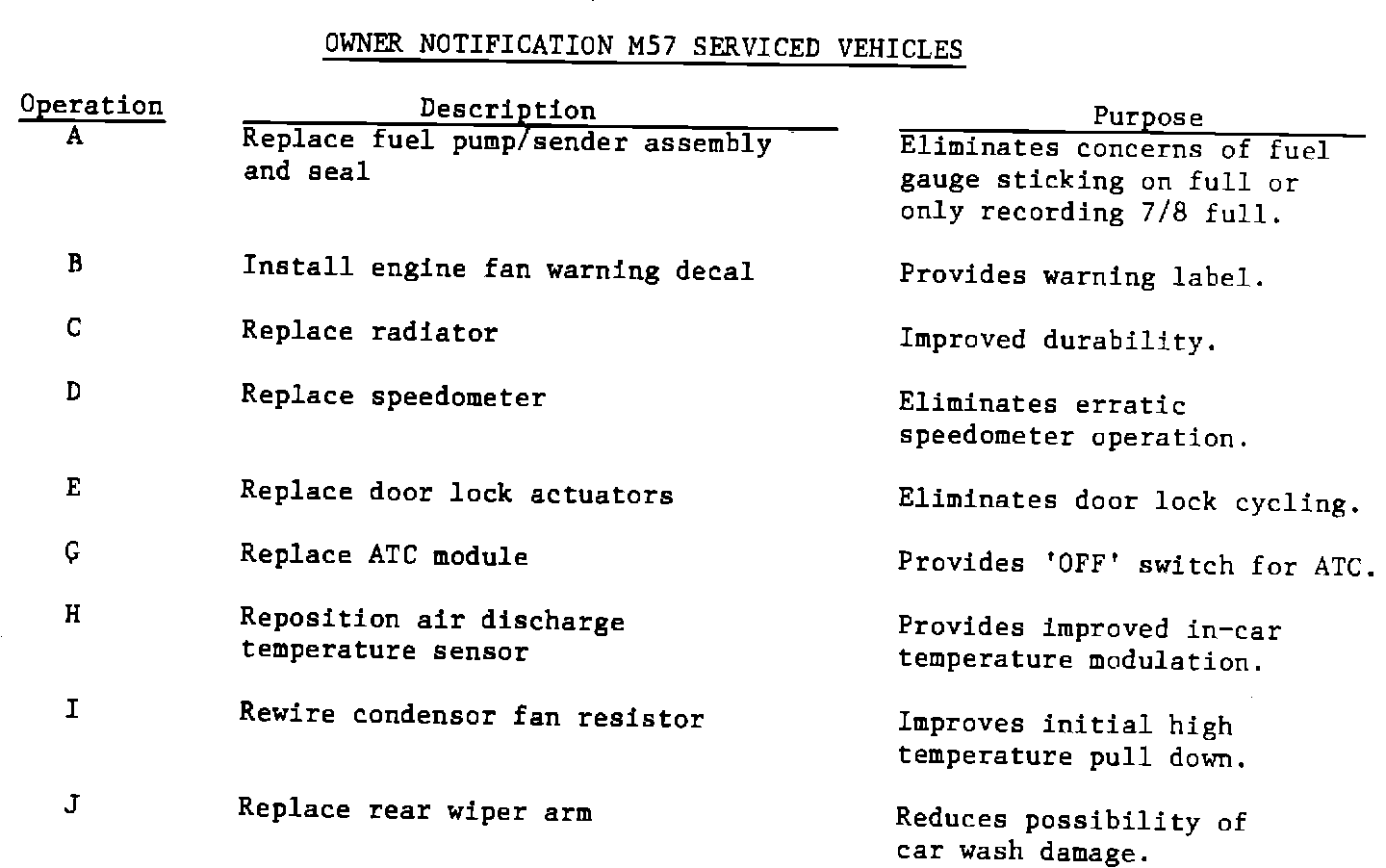

Be sure you are familiar with each operation. This will prevent major repair difficulties. In detail, the service operations in this program consist of:

Attachment I Page 2 of 2
