Merkur Scorpio V6-179 2.9L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

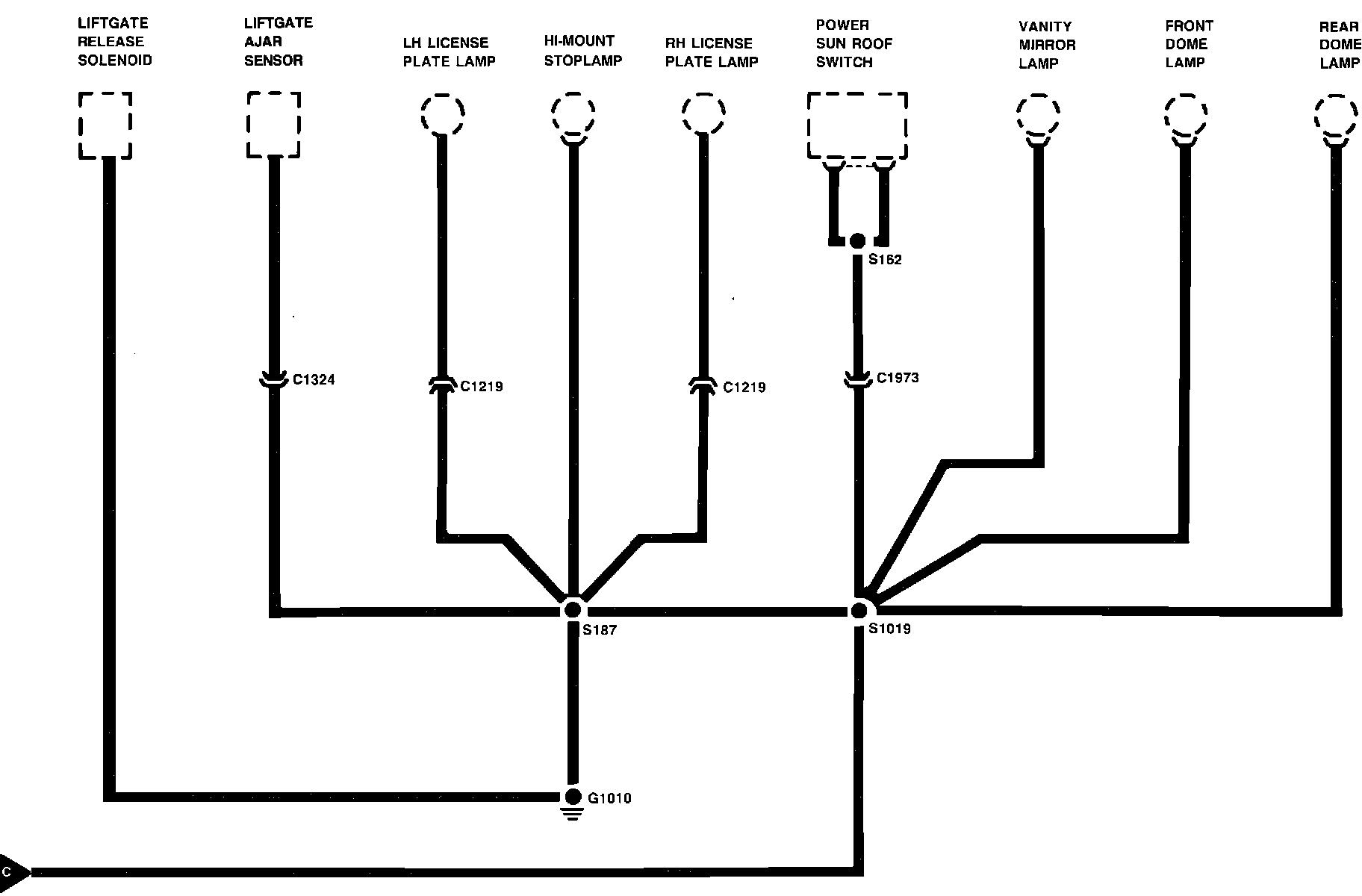

Ground Distribution
>>
G1010
G1010
G1005 & G1010:
