Home
>>
Mercury
>>
1988
>>
Merkur Scorpio V6-179 2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Windshield Washer Switch

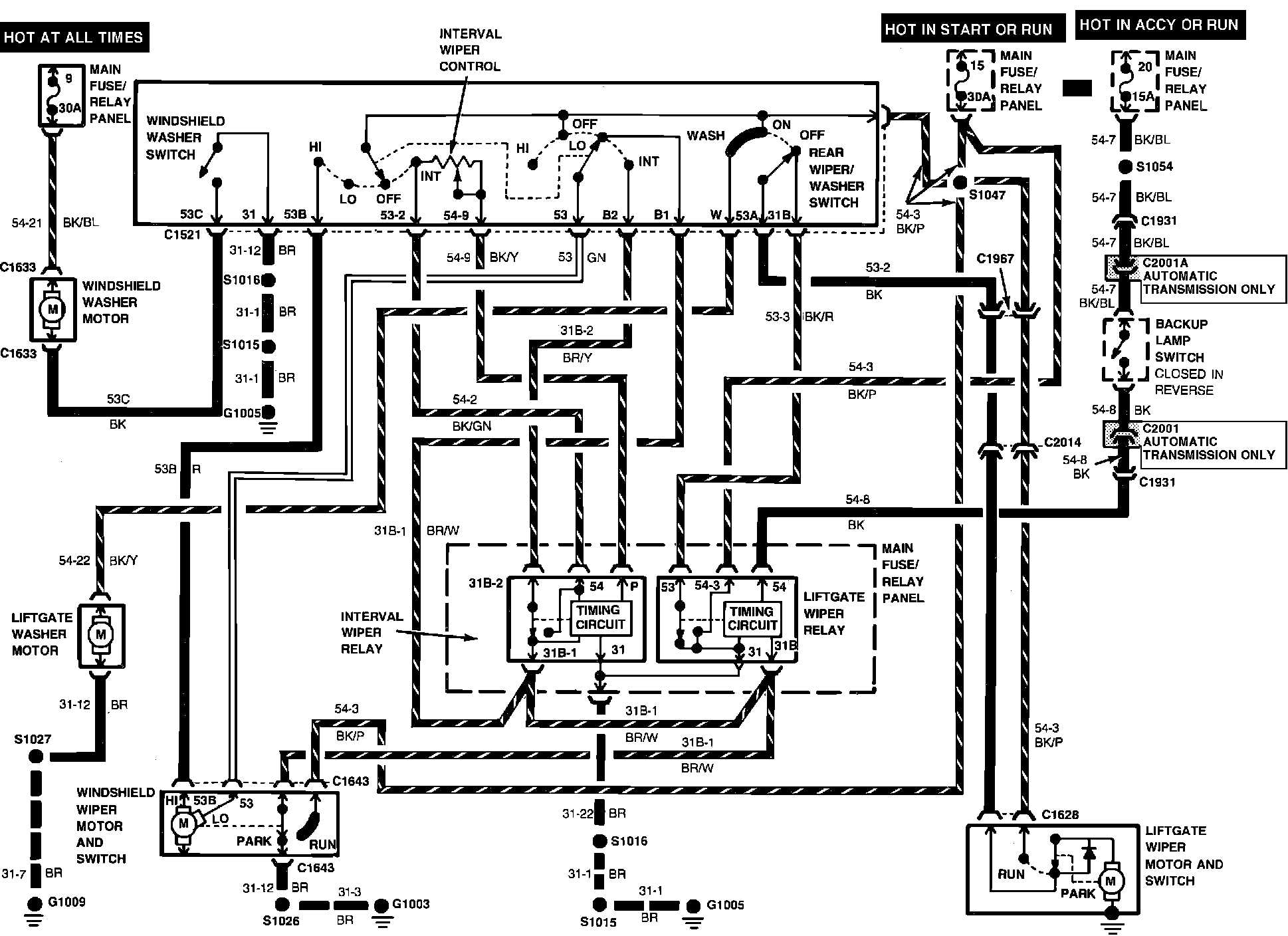

Windshield Washer Switch
Liftgate/Windshield Wiper/Washer:
