Merkur Scorpio V6-179 2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

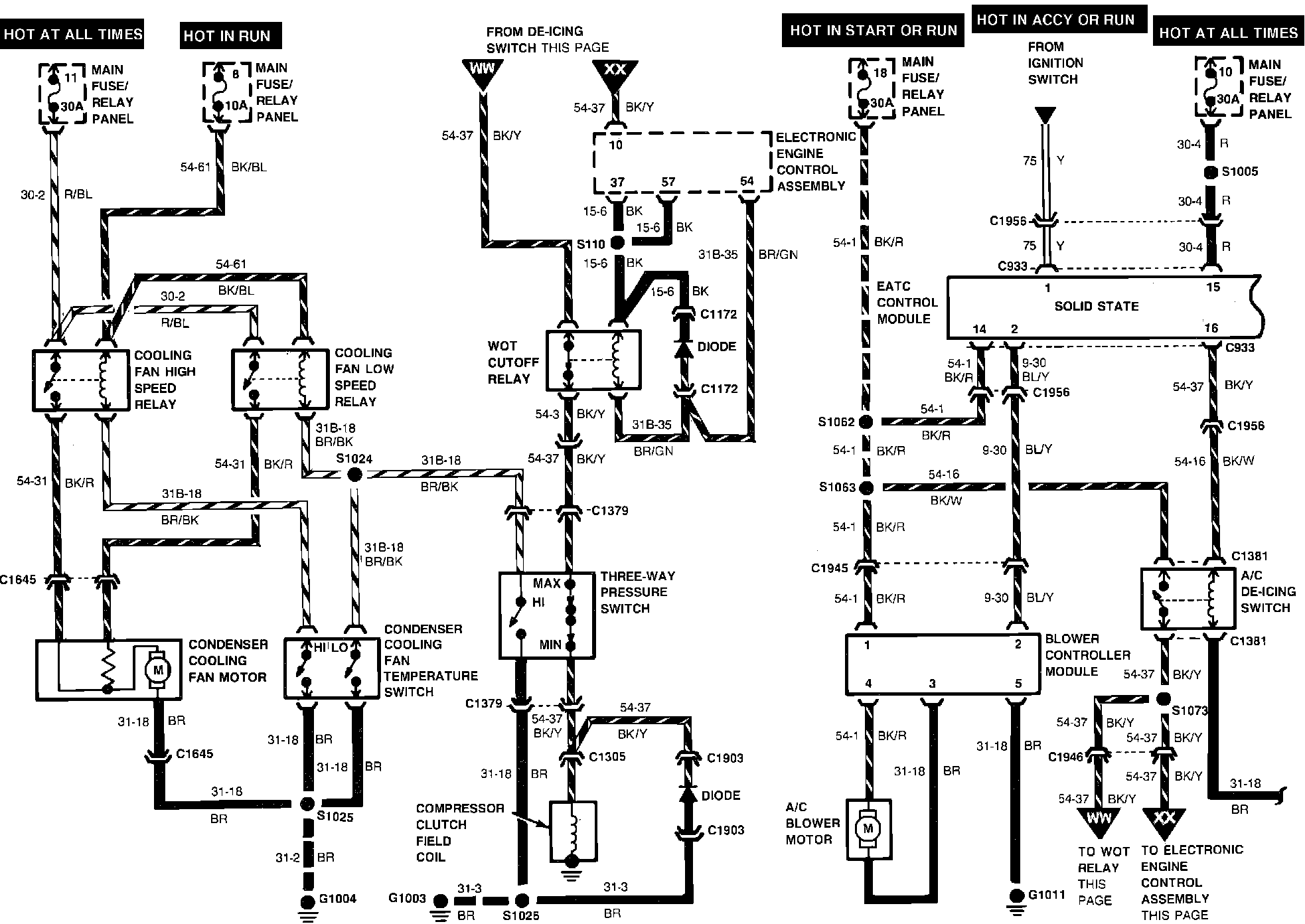

System Diagram
System Diagram

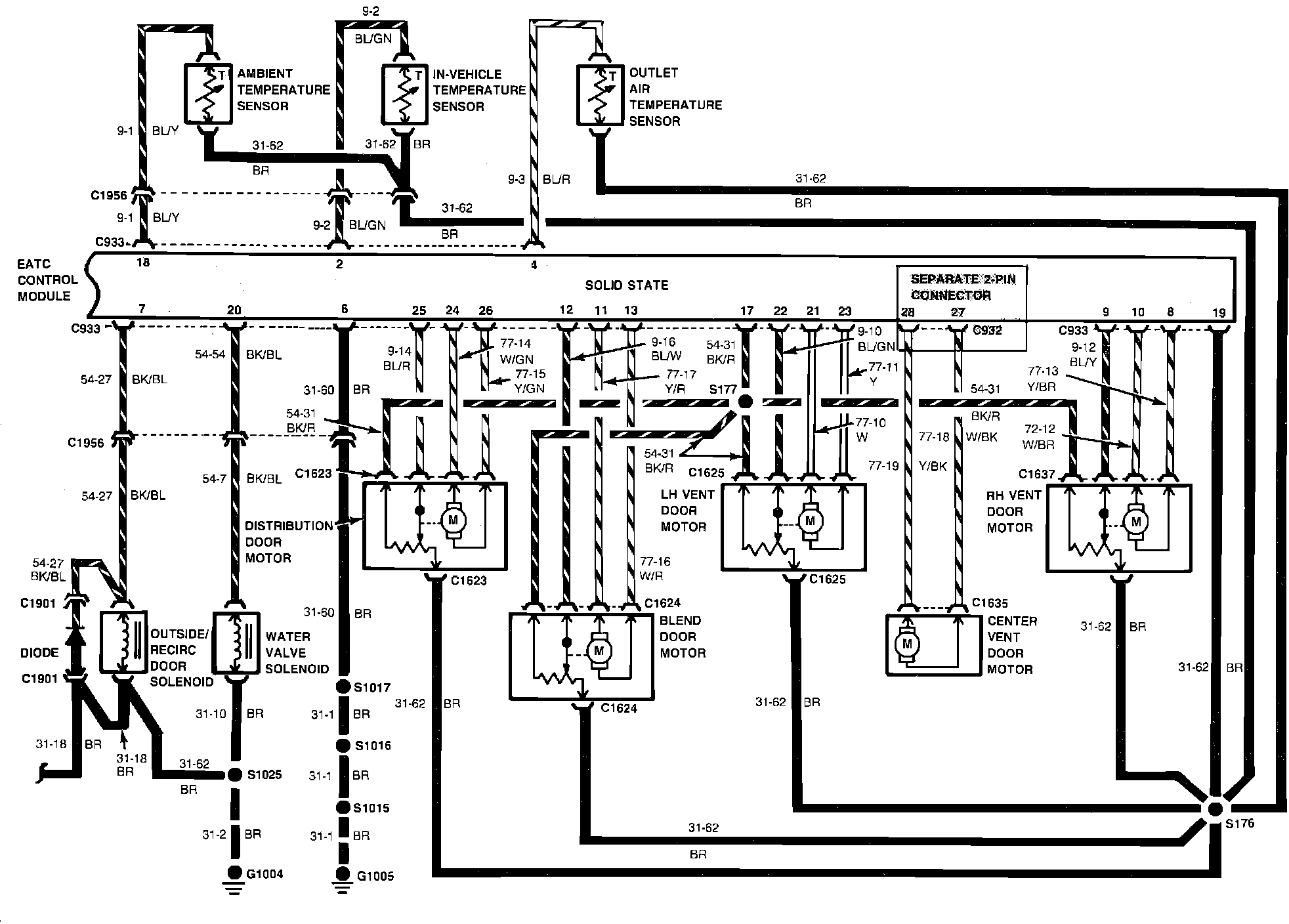

Electronic Automatic Temperature Control:
Electronic Automatic Temperature Control:
