Merkur Scorpio V6-179 2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Part 1 of 3
Part 1 of 3

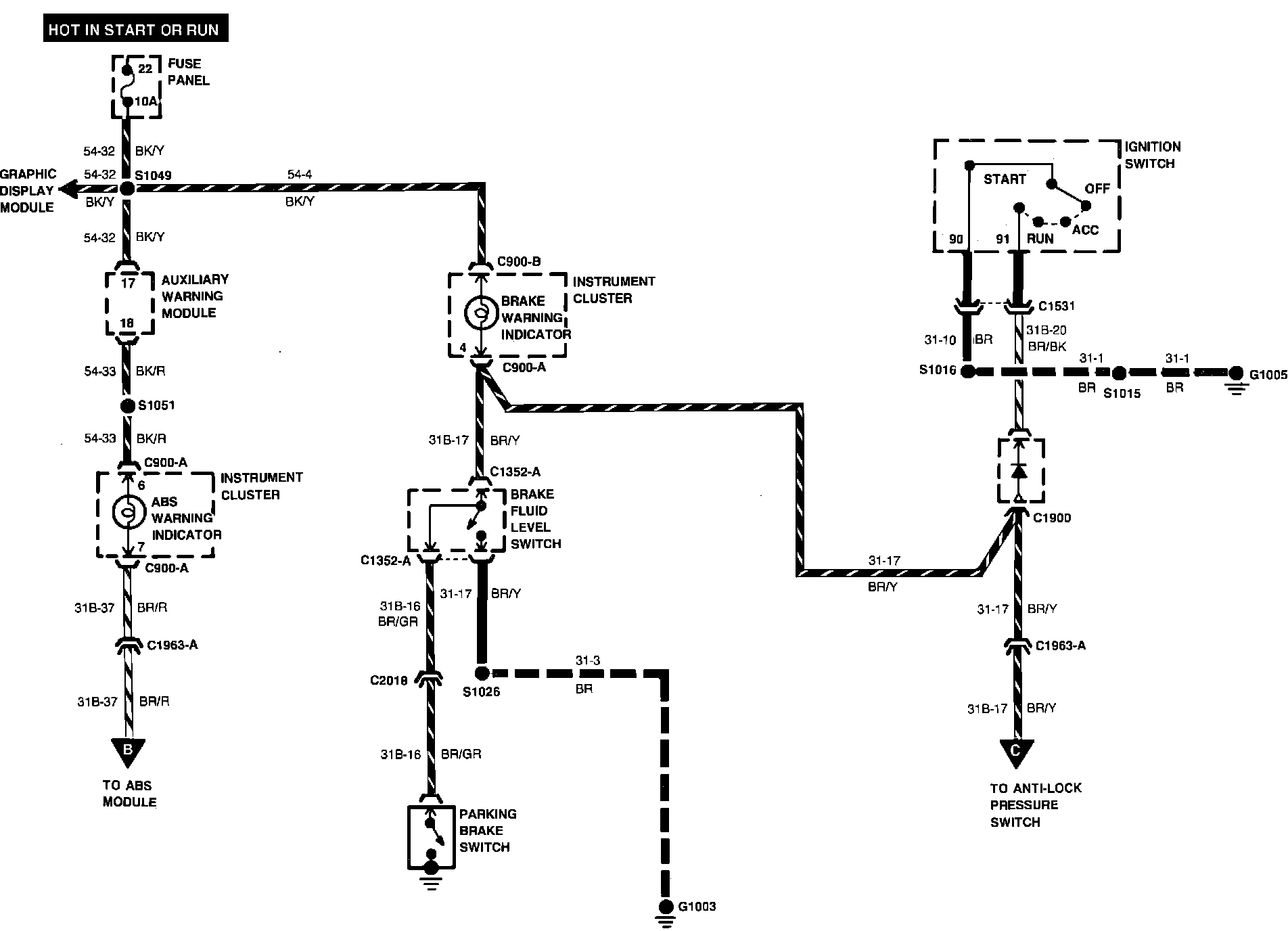

Anti-Lock Brakes:
