Mercury
>>
1988
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Diagrams
>>
Electrical Diagrams
>>
Tailgate
Tailgate

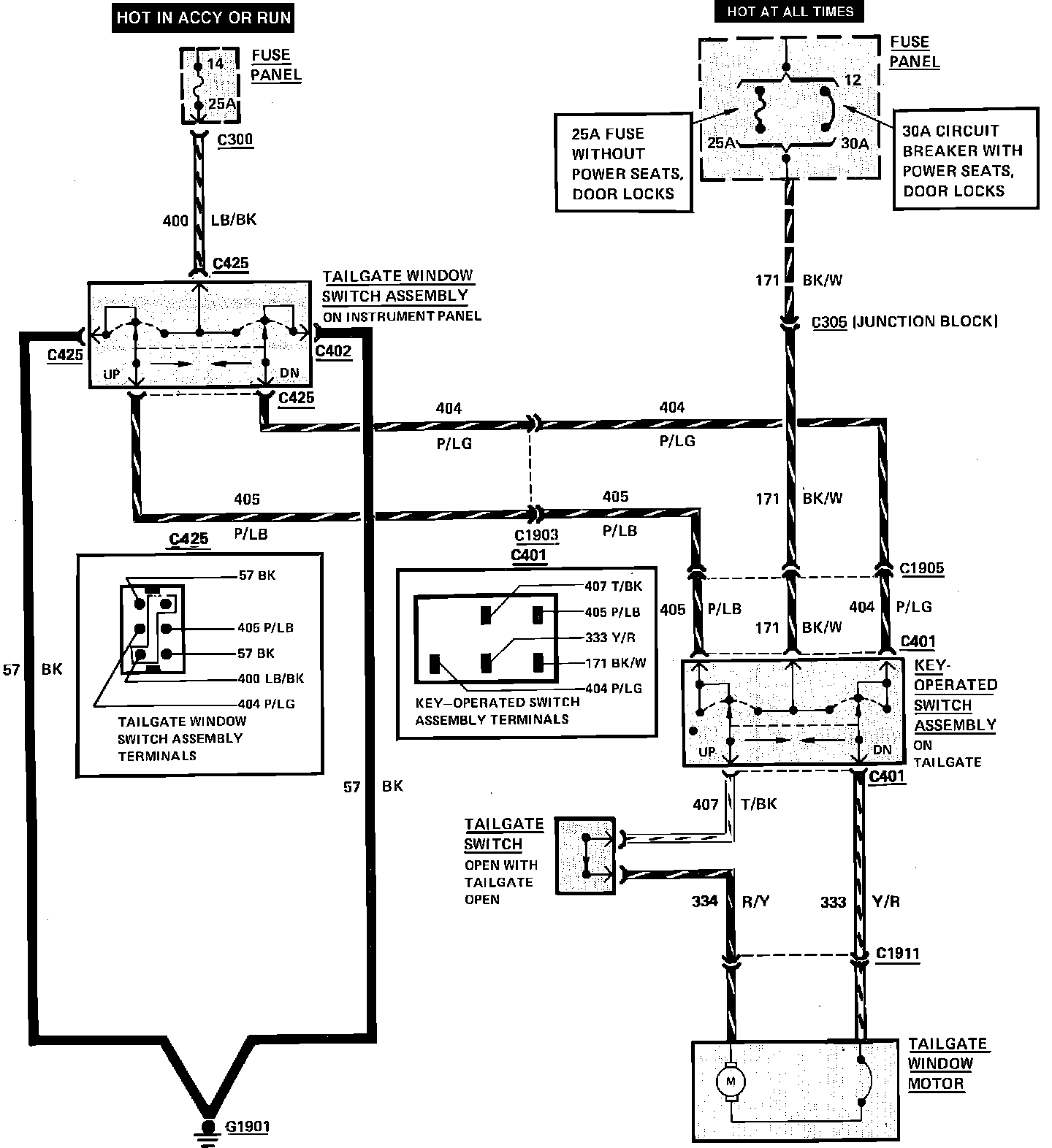

Power Window (Tailgate) Wiring Circuit:
