Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1988
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Exterior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
>>
Wagon
Wagon

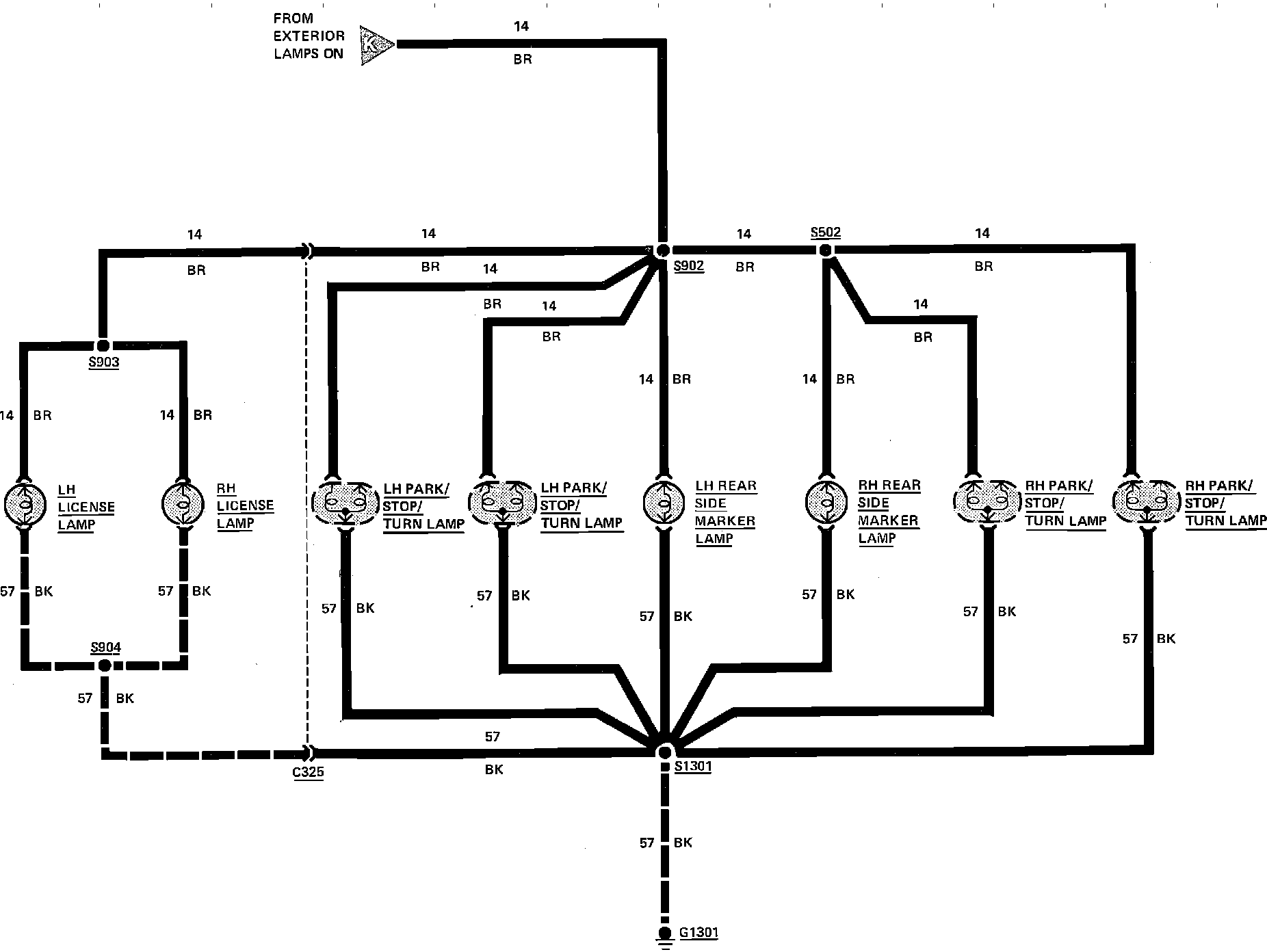

Rear Exterior Lights Wiring Circuit.:
