Mercury
>>
1988
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Ground Distribution
>>

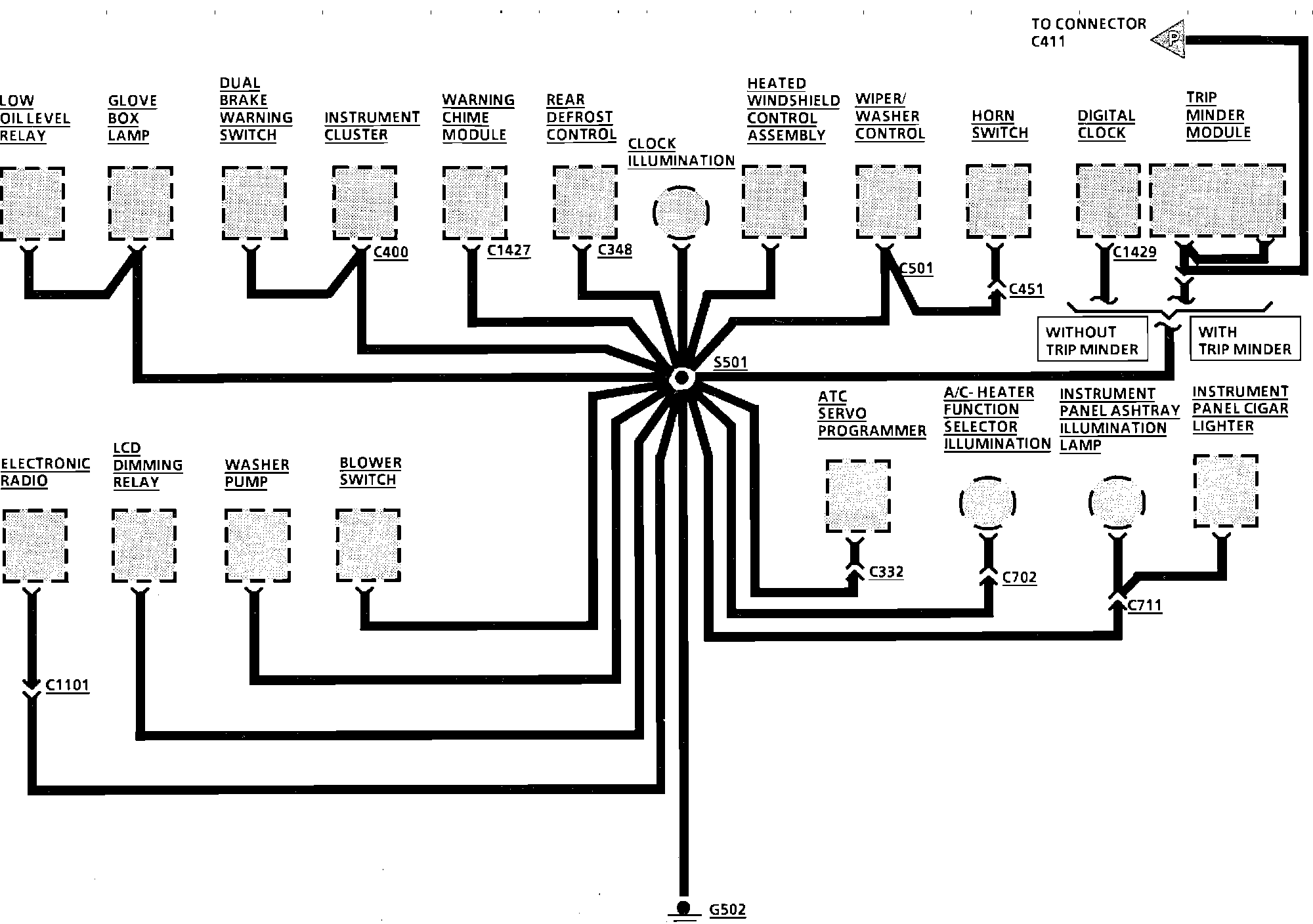

Ground Distribution. G502
Ground Distribution. G502
Ground Distribution. G502:
