Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

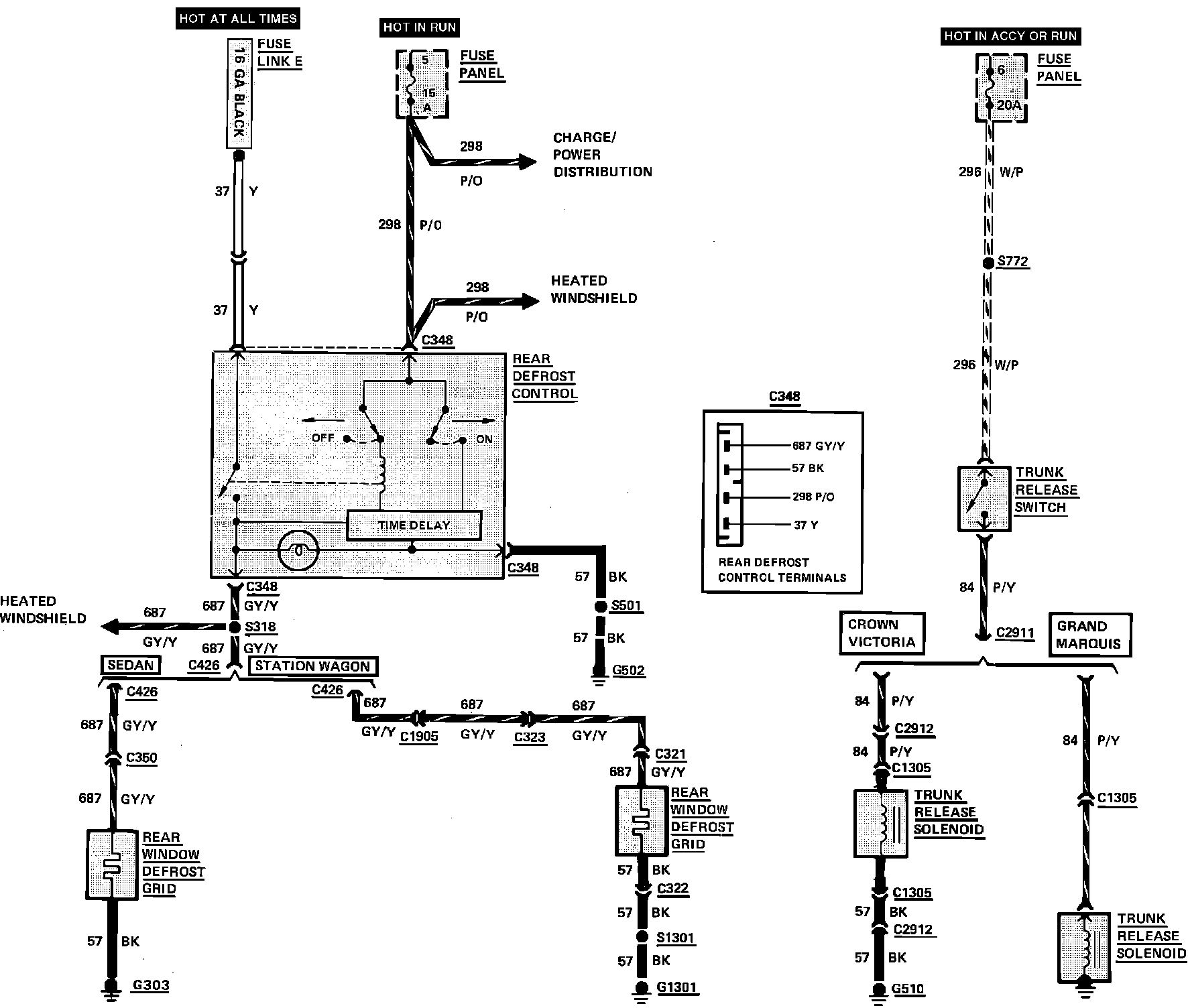

Rear Window Defrost & Trunk Release Wiring Circuit:
