Oil Level Warning Indicator
Oil Level Warning Indicator

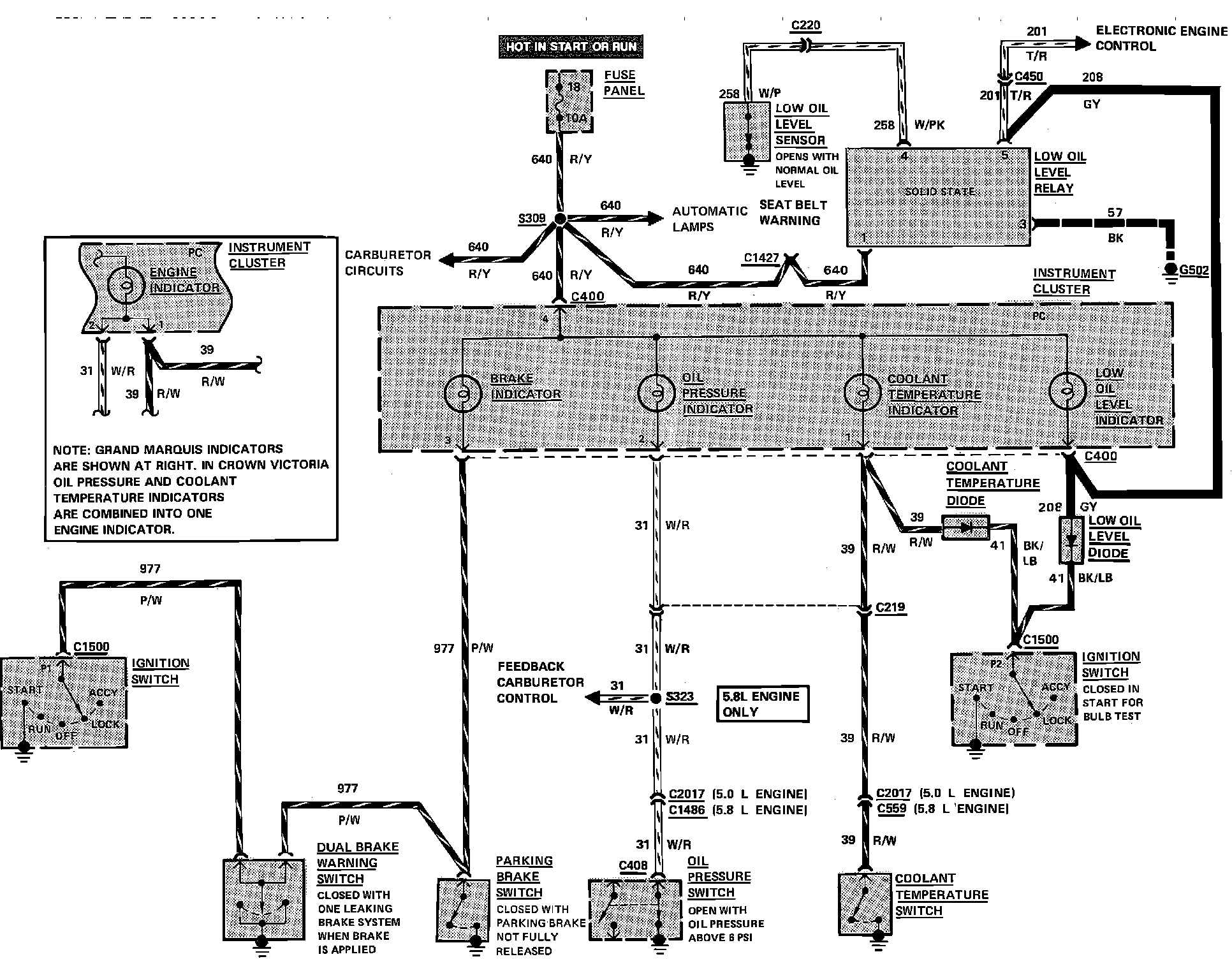

Brakes, Coolant, Engine & Oil Indicator Wiring Circuit:
