Mercury
>>
1987
>>
Topaz FWD L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>

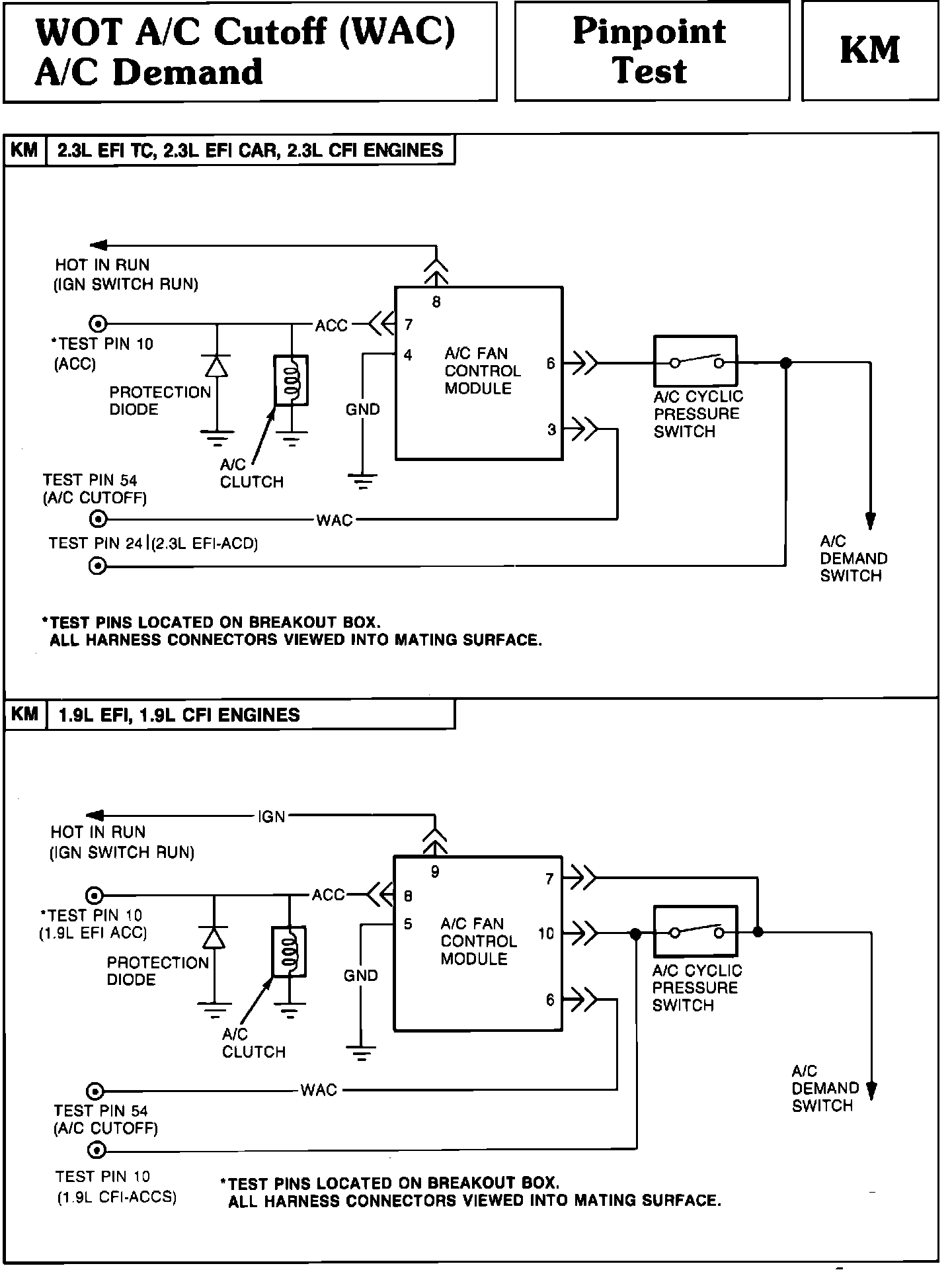

KM - WOT A/C Cut-Off (WAC) A/C Demand
>>
KM 1.9L, 2.3L Wiring Diagrams
KM 1.9L, 2.3L Wiring Diagrams
