Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

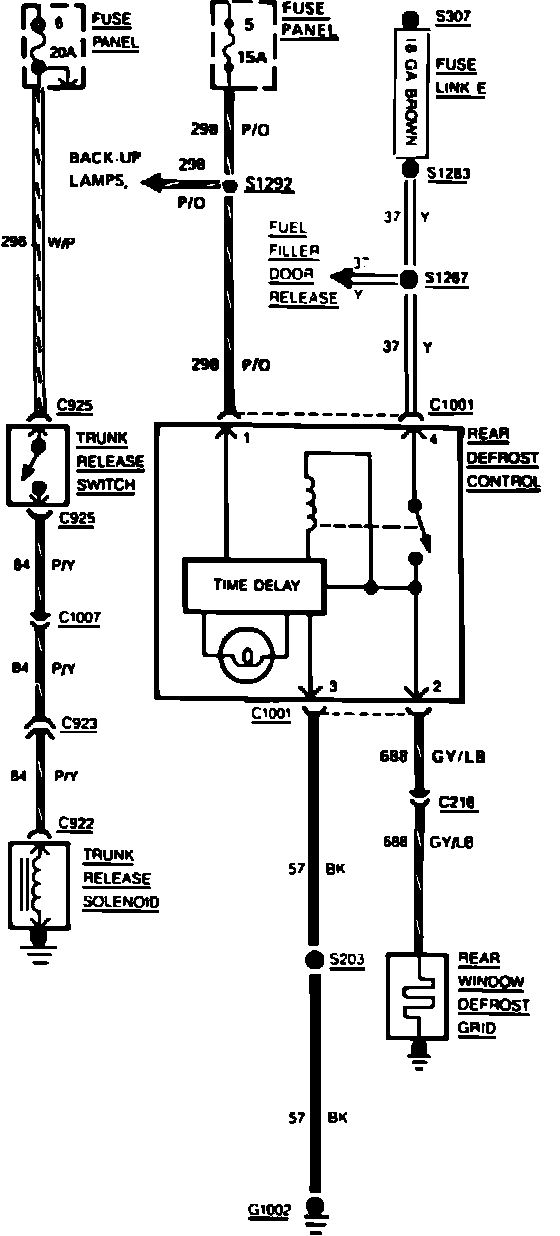

Fig. 56 Rear Window Defroster & Trunk Release Wiring Circuit:
