Mercury
>>
1987
>>
Topaz FWD L4-140 2.3L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

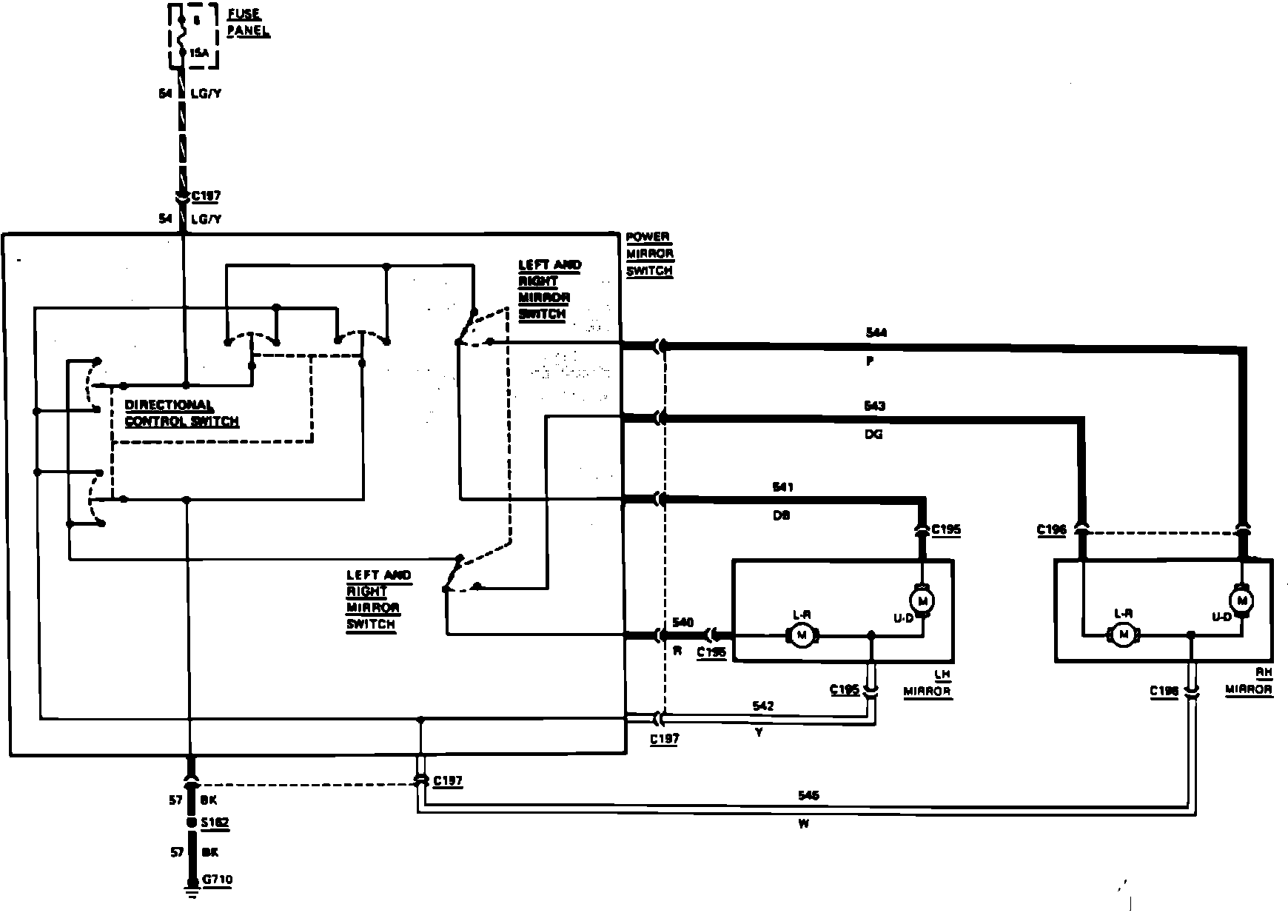

Fig. 36 Power Mirrors Wiring Circuit:
