Graphic Warning Module Wiring Circuit
Graphic Warning Module Wiring Circuit

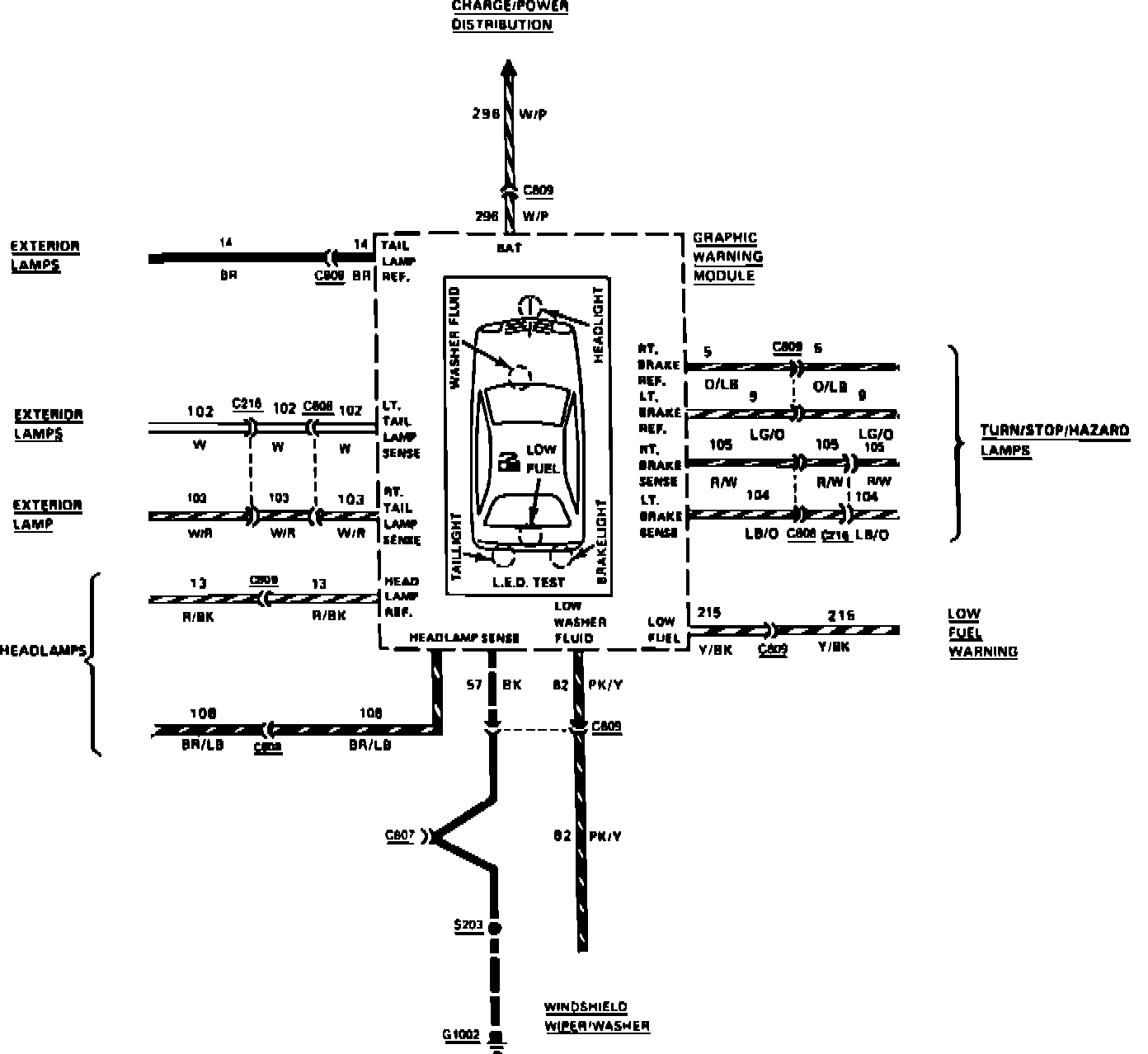

Fig. 14 Graphic Display System Wiring Circuit:
