Mercury
>>
1987
>>
Topaz FWD L4-122 2.0L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windshield Washer Switch
>>
With Intermittent Wipers
With Intermittent Wipers

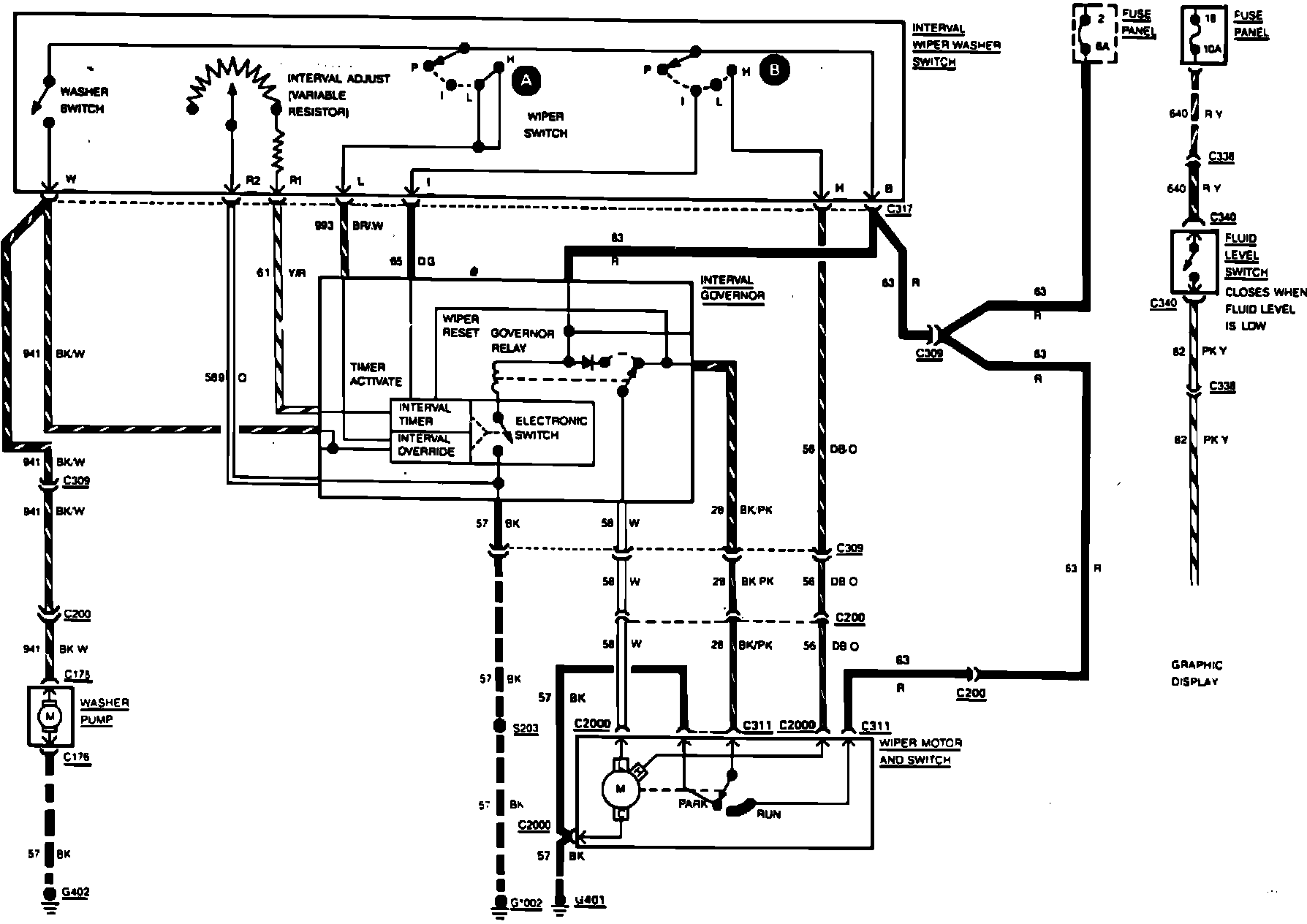

Fig. 49 Windshield Wiper & Washer Wiring Circuit. With Interval:
