Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

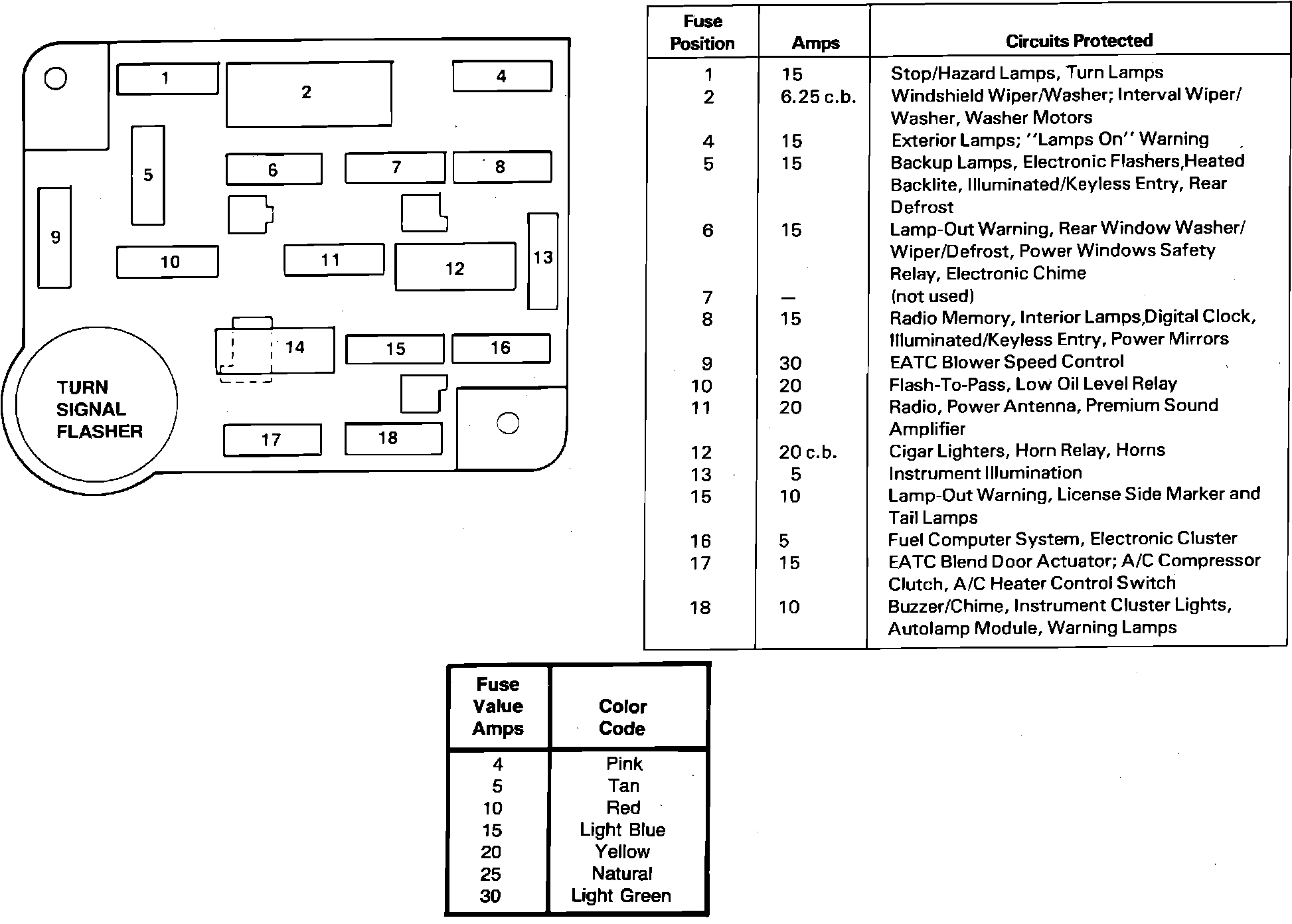

Fig. 1 Fuse Panel:
