Mercury
>>
1987
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G201 & G202
G201 & G202

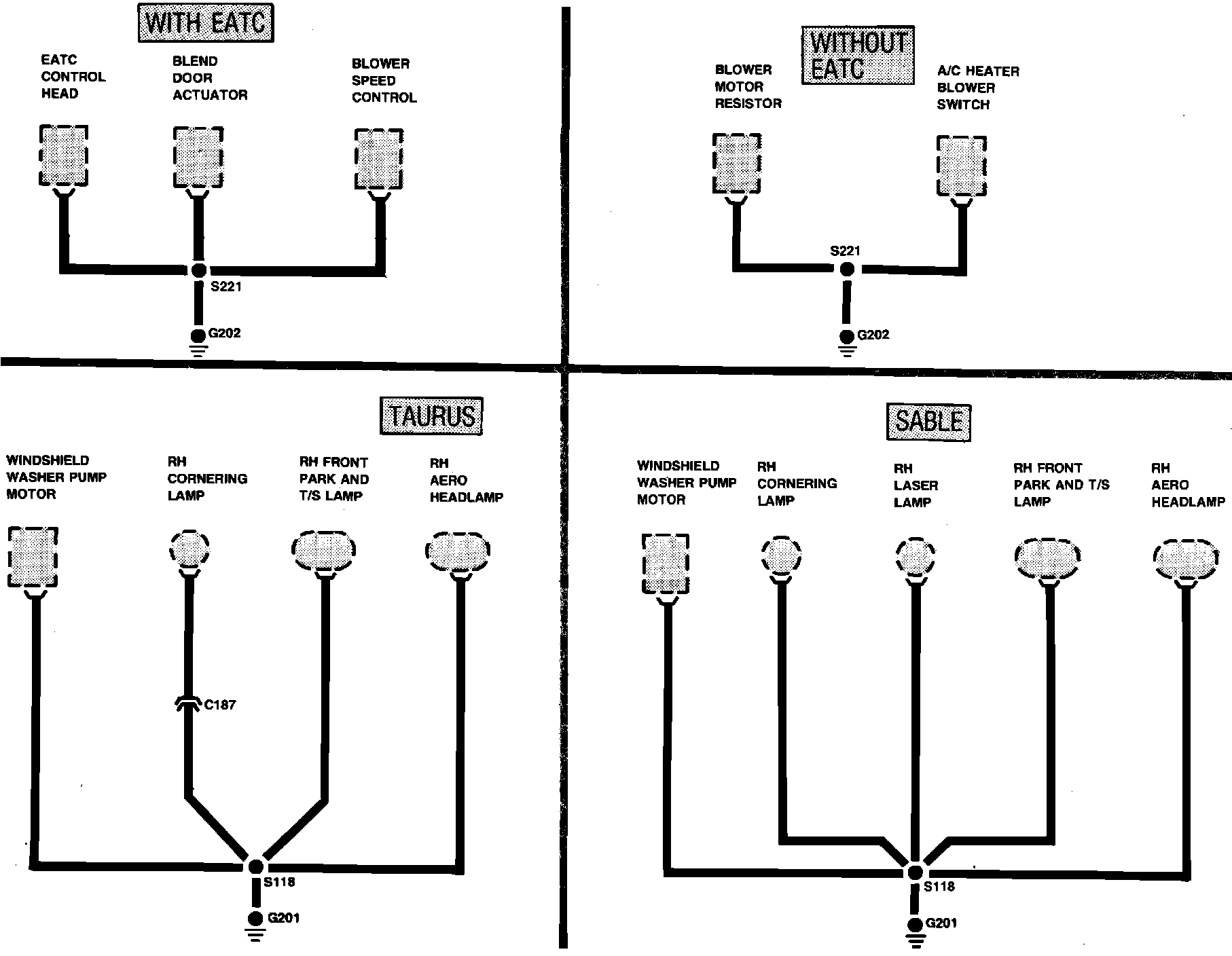

Fig. 28 Ground Distribution. G201 & G202:
