Home
>>
Mercury
>>
1987
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G104 (Sable Sedan)
G104 (Sable Sedan)

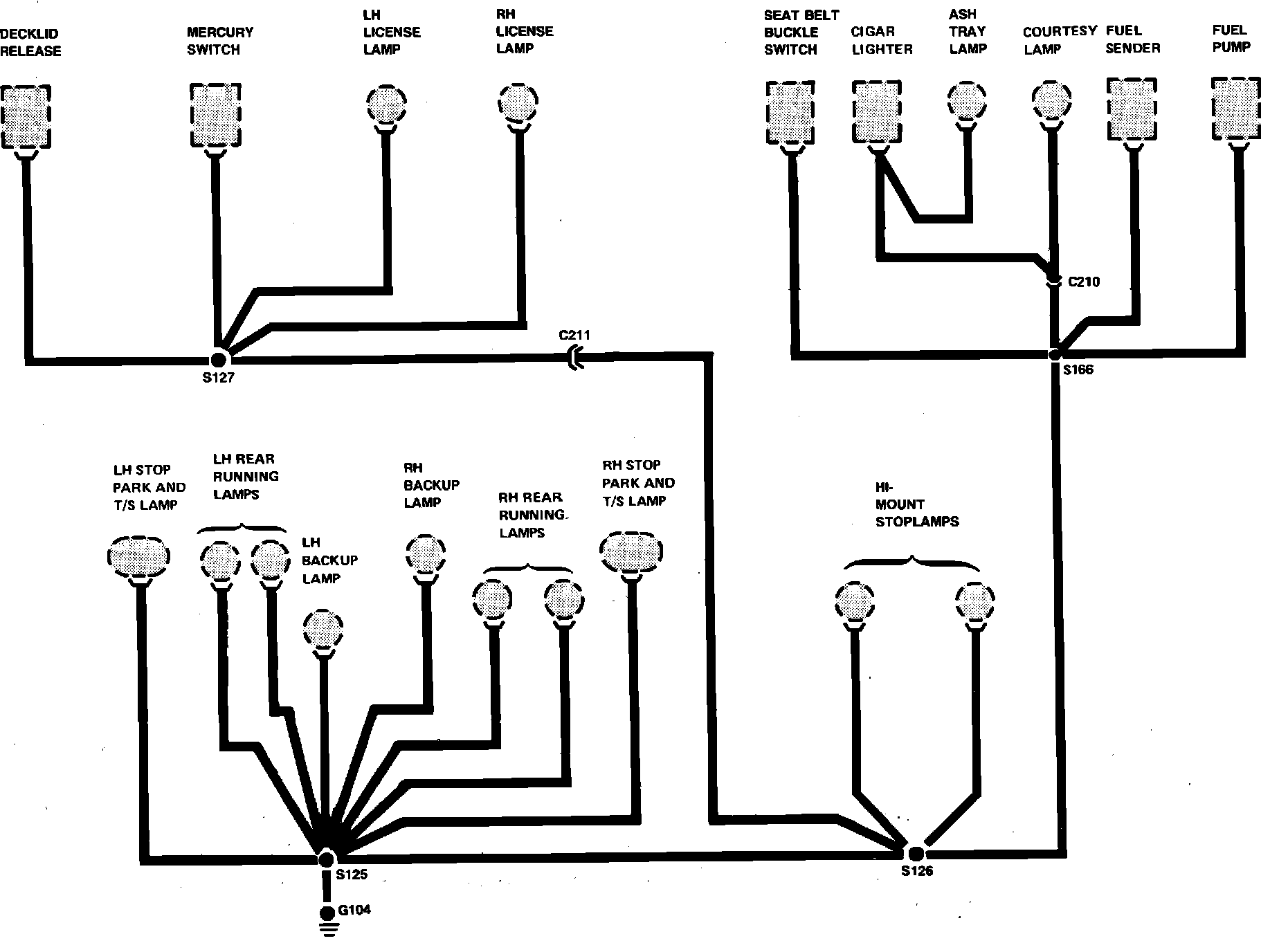

Fig. 20 Ground Distribution. G104 (Sable Sedan):
