Mercury
>>
1987
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

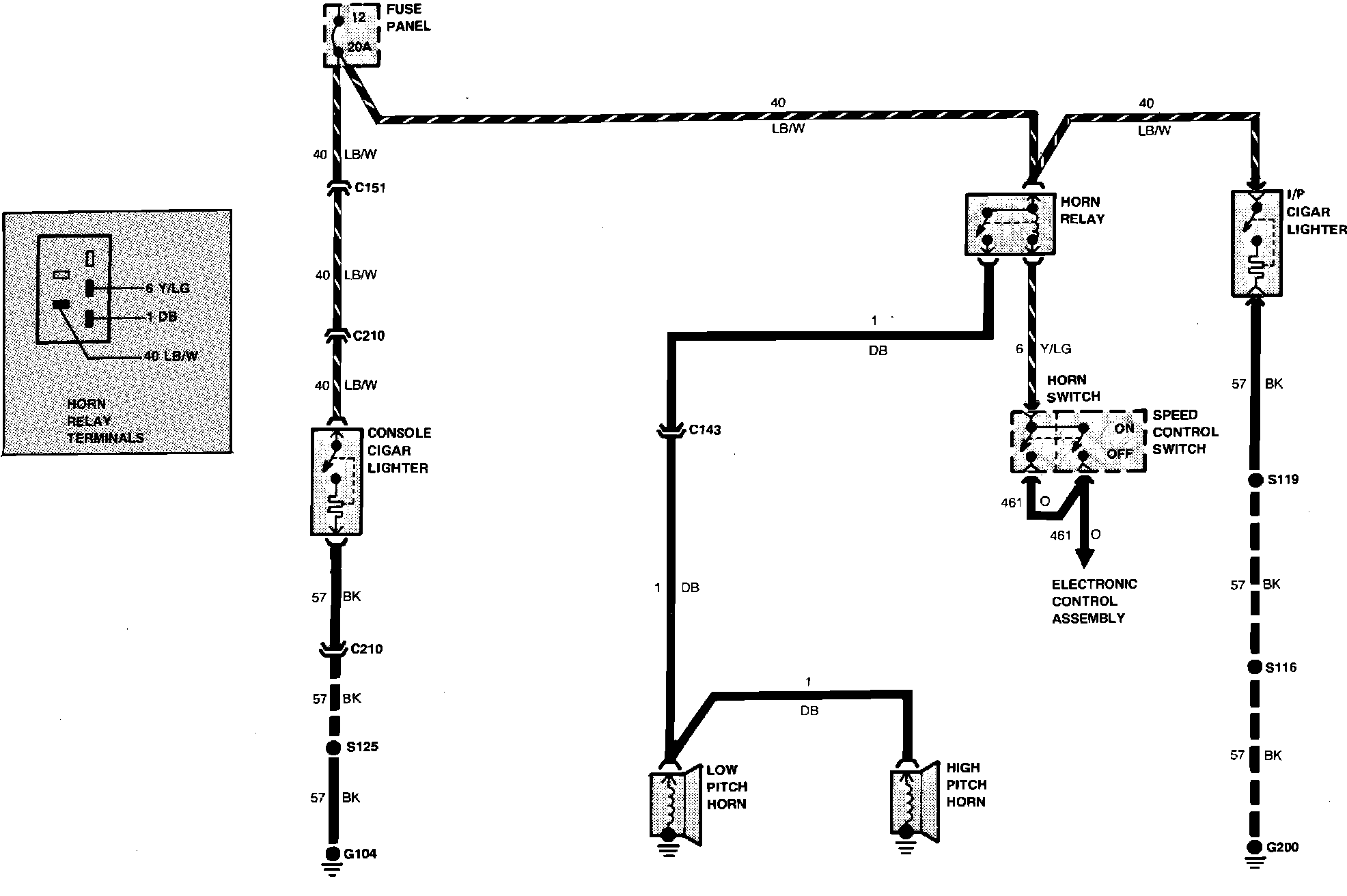

Fig. 9 Cigar Lighter & Horn Wiring Circuit:
