Home >> Mercury >> 1987 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Testing and Inspection

Air Door Actuator / Motor: Testing and Inspection

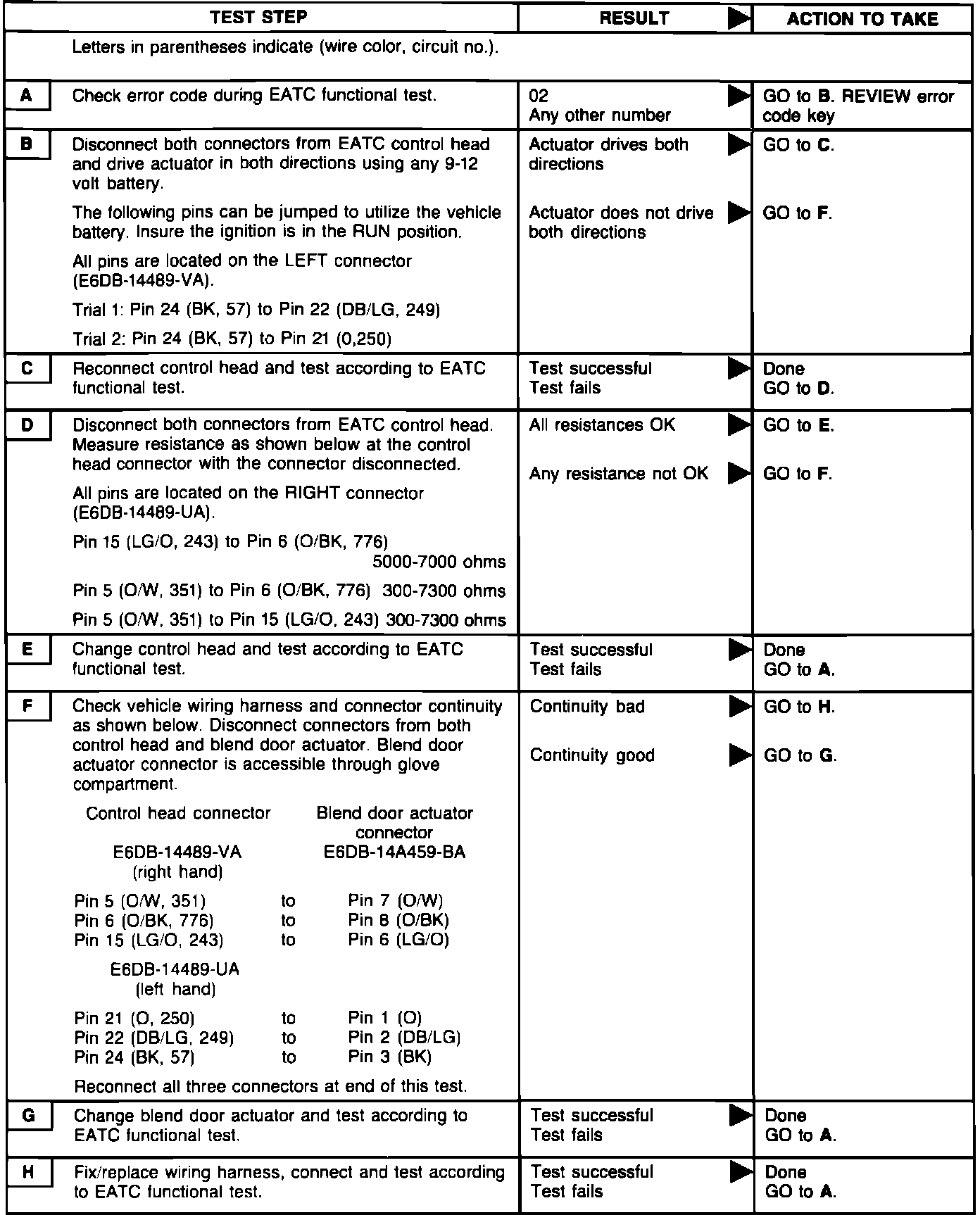

Fig. 65 Blend door actuator diagnosis.:
