Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1987
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Lumbar Seats
Power Lumbar Seats

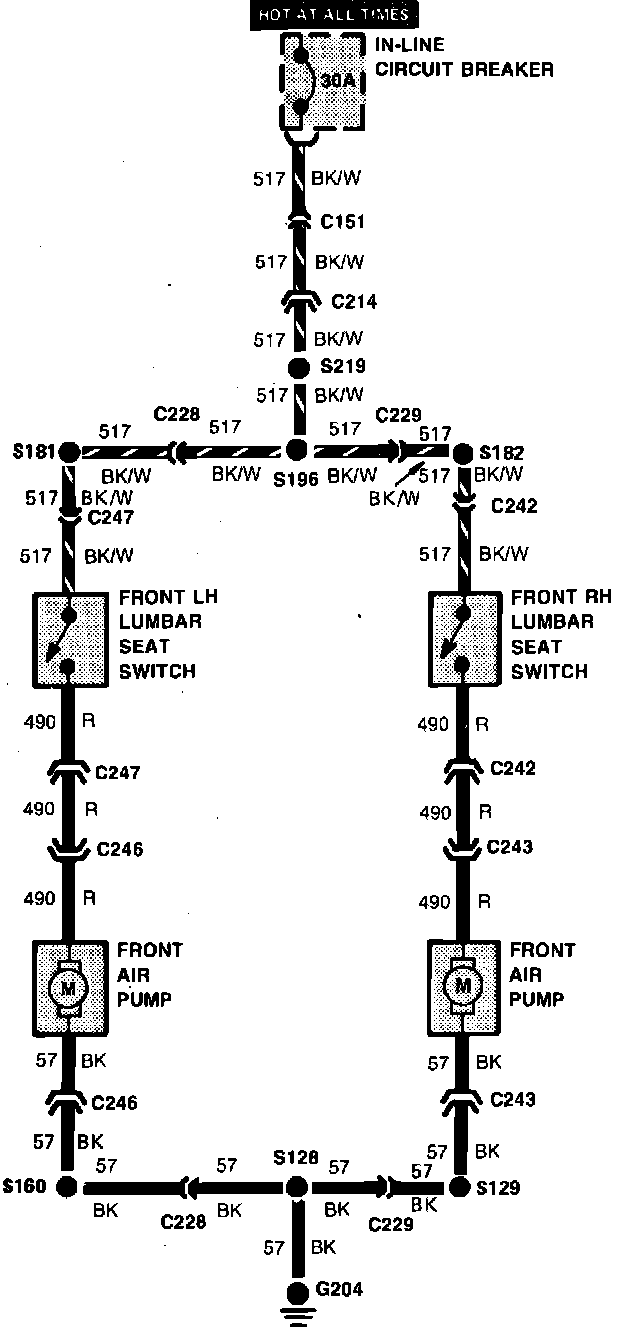

Fig. 67 Power Lumbar Seats Wiring Circuit:
