Horn/Cigar Lighter Schematic - Manual Revision

90ford11
ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1987 - PAGE 83 - HORN RELAY CIRCUITRY REVISED

Article No. 90-6B-8







FORD: 1987 ESCORT, EXP

LINCOLN-MERCURY: 1987 LYNX

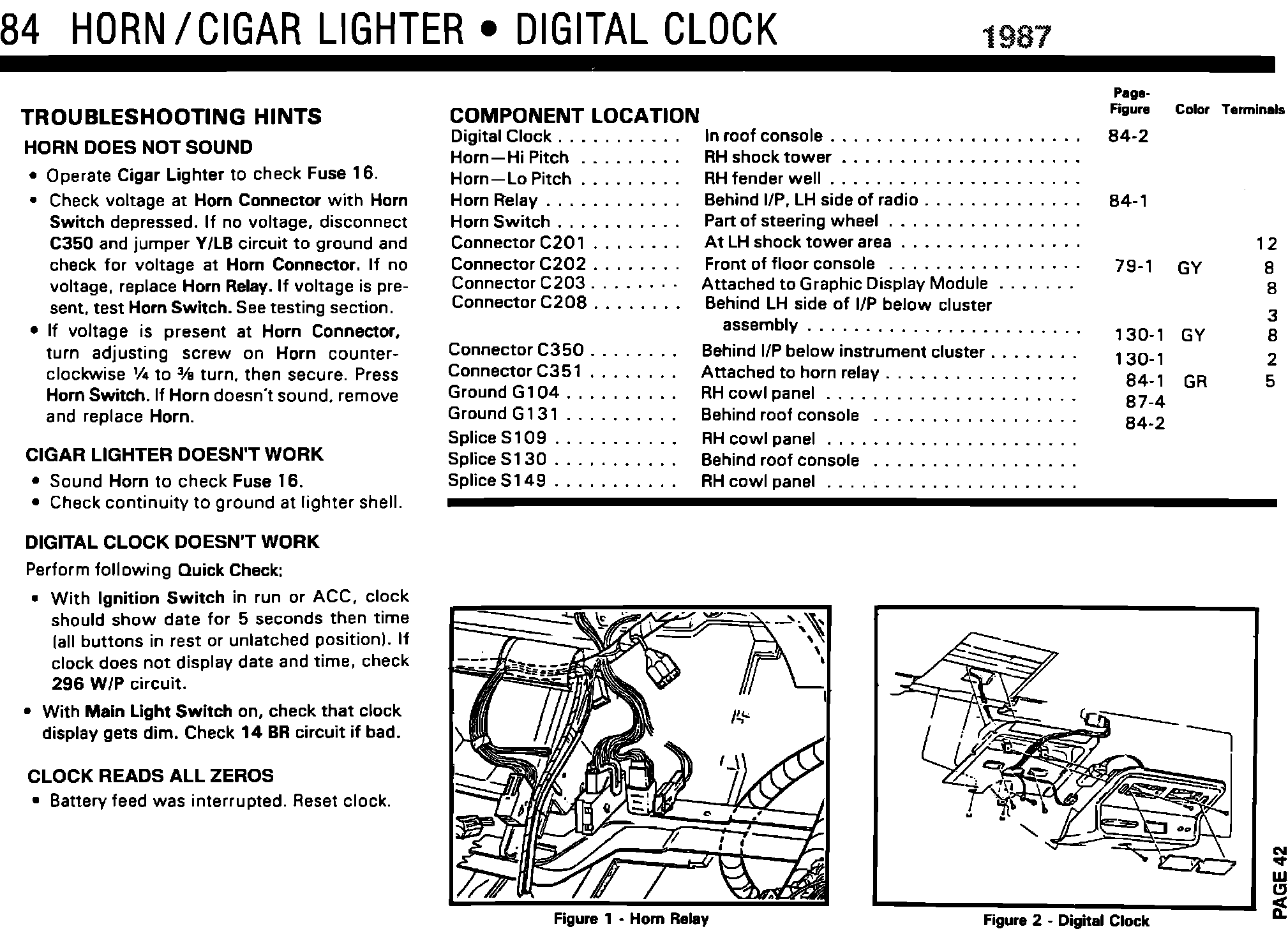

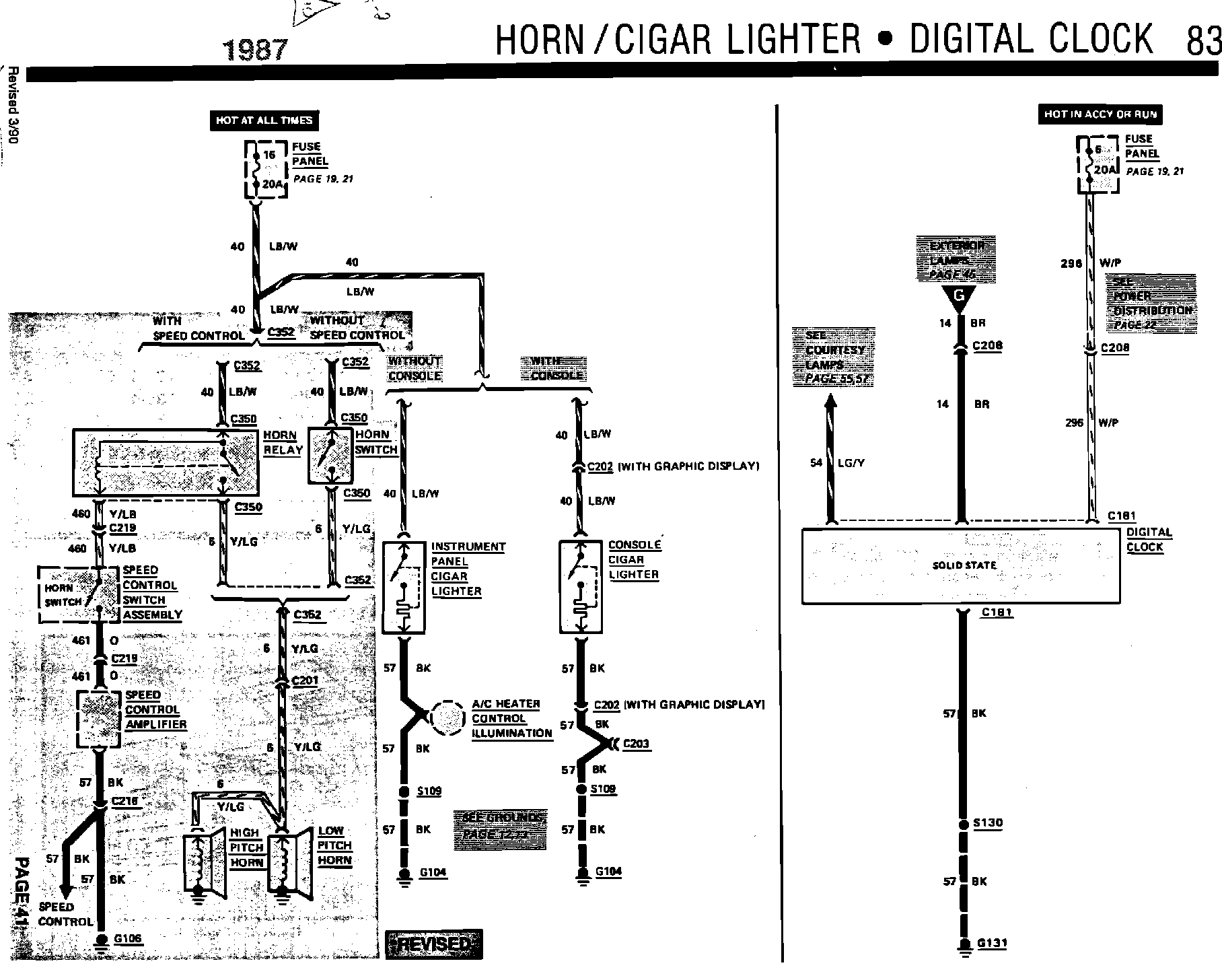

ISSUE: The Horn/Cigar Lighter schematic on page 83 of the 1987 Escort/Lynx/EXP EVTM has been modified. The affected circuit is for the horn relay.

ACTION: Refer to the pages following this TSB article for the updated schematic.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
