Home
>>
Mercury
>>
1987
>>
Lynx L4-116 1.9L VIN 9 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

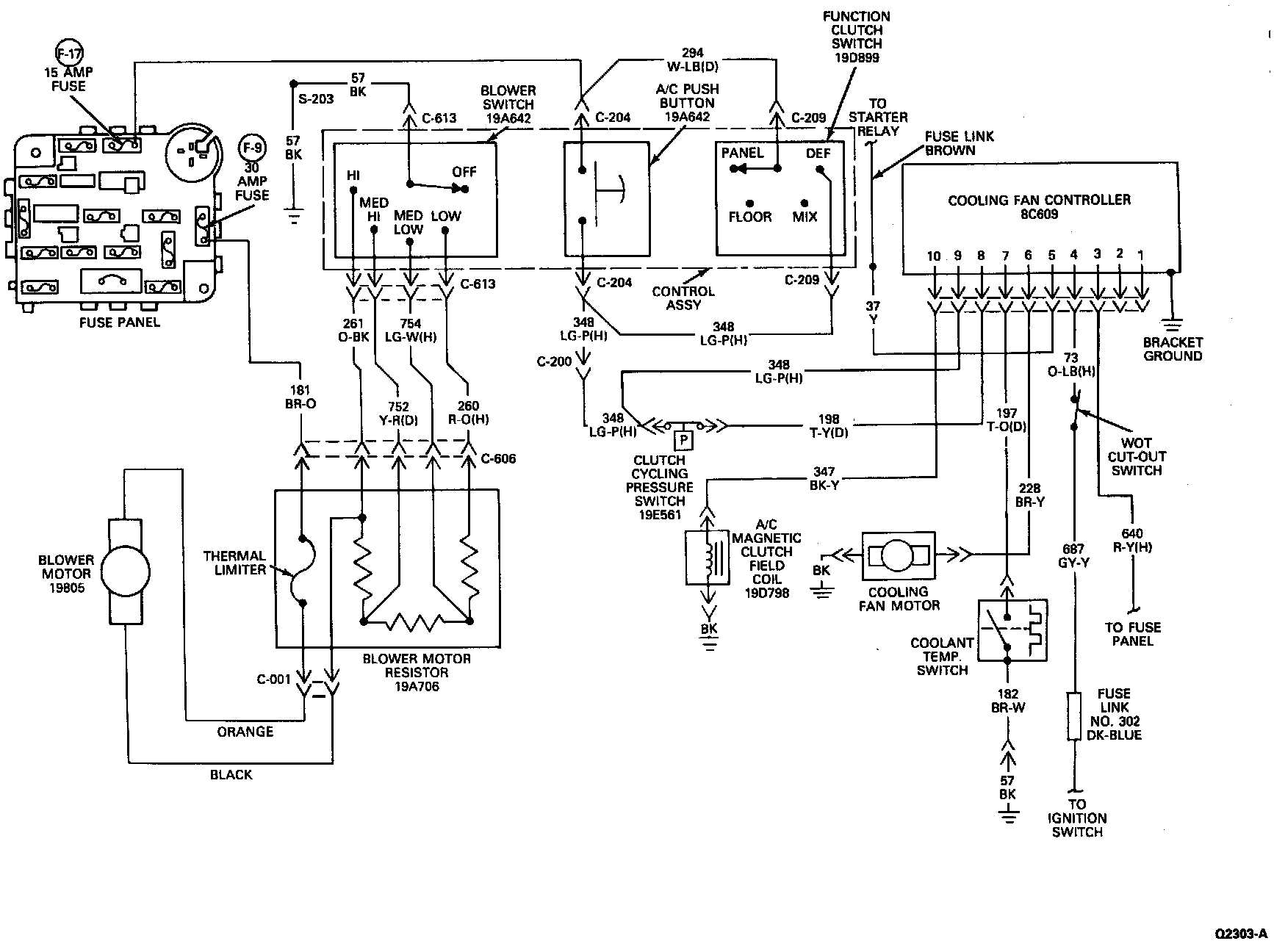

System Diagram
>>
With Manual Transmission
With Manual Transmission
1.9L, Manual Trans, With A/C:
