With Automatic Lamps & Delayed Exit System Wiring Circuit

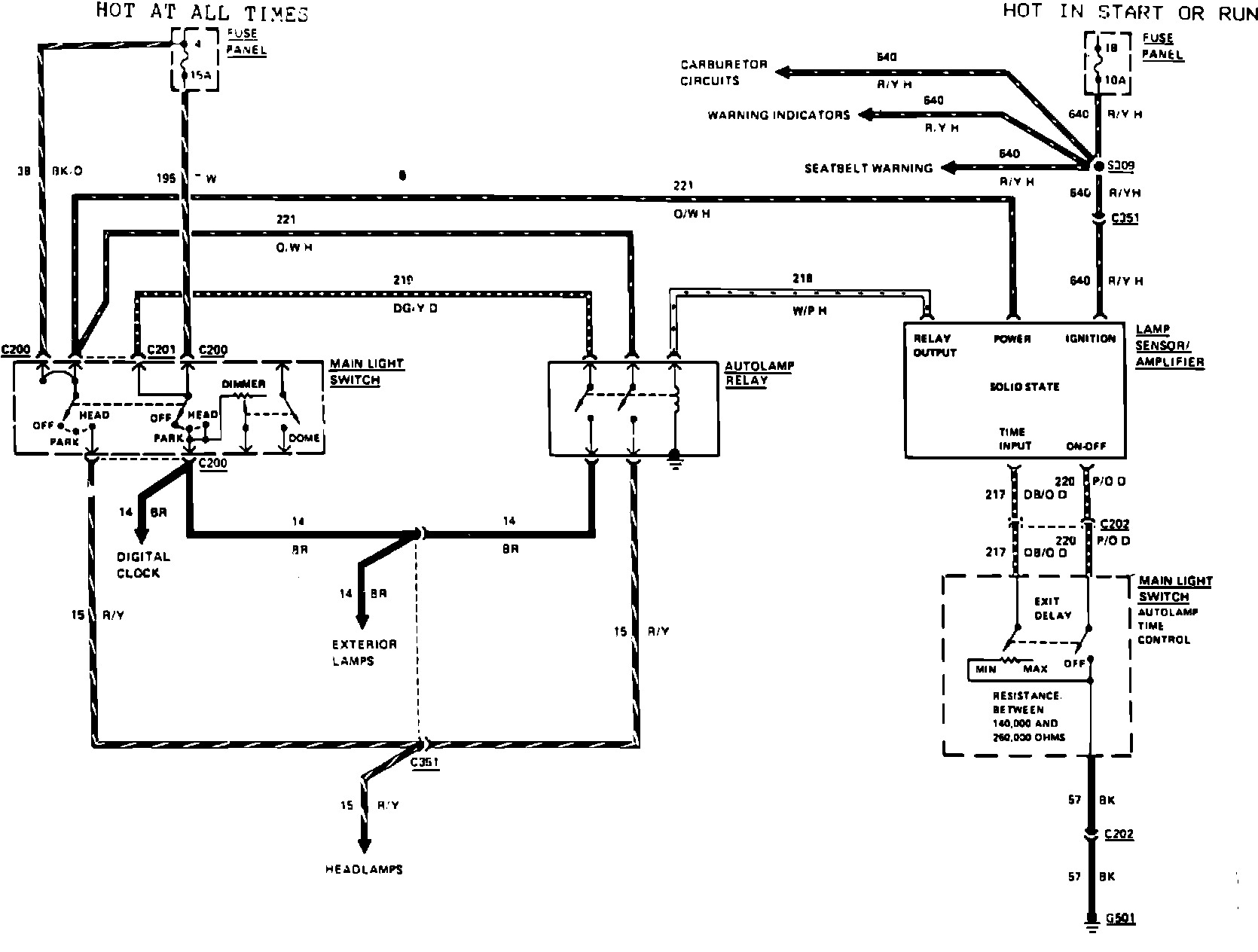

Fig. 7 Automatic Lamps & Delayed Exit System Wiring Circuit:
