Mercury
>>
1987
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G110
G110

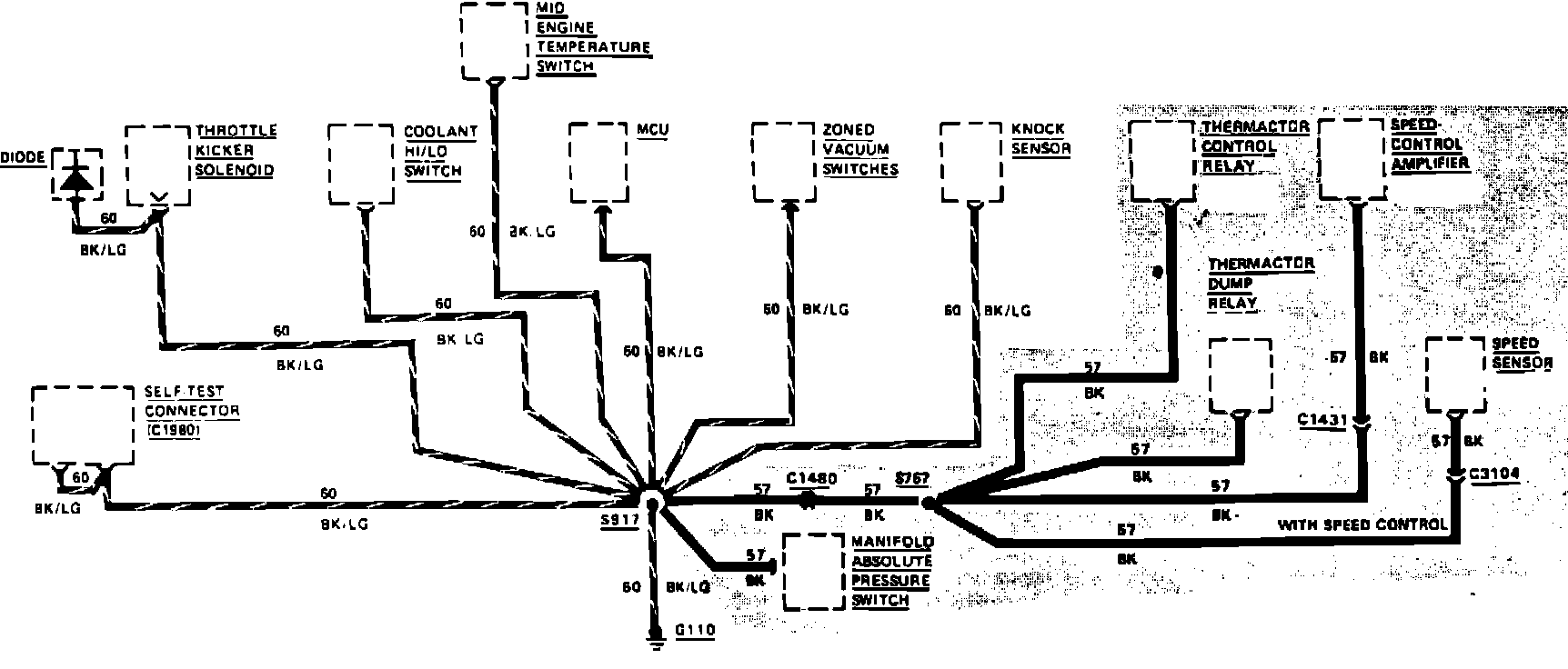

Fig. 20 Ground Distribution. G110:
