Home
>>
Mercury
>>
1987
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Exterior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
>>
Wagon
Wagon

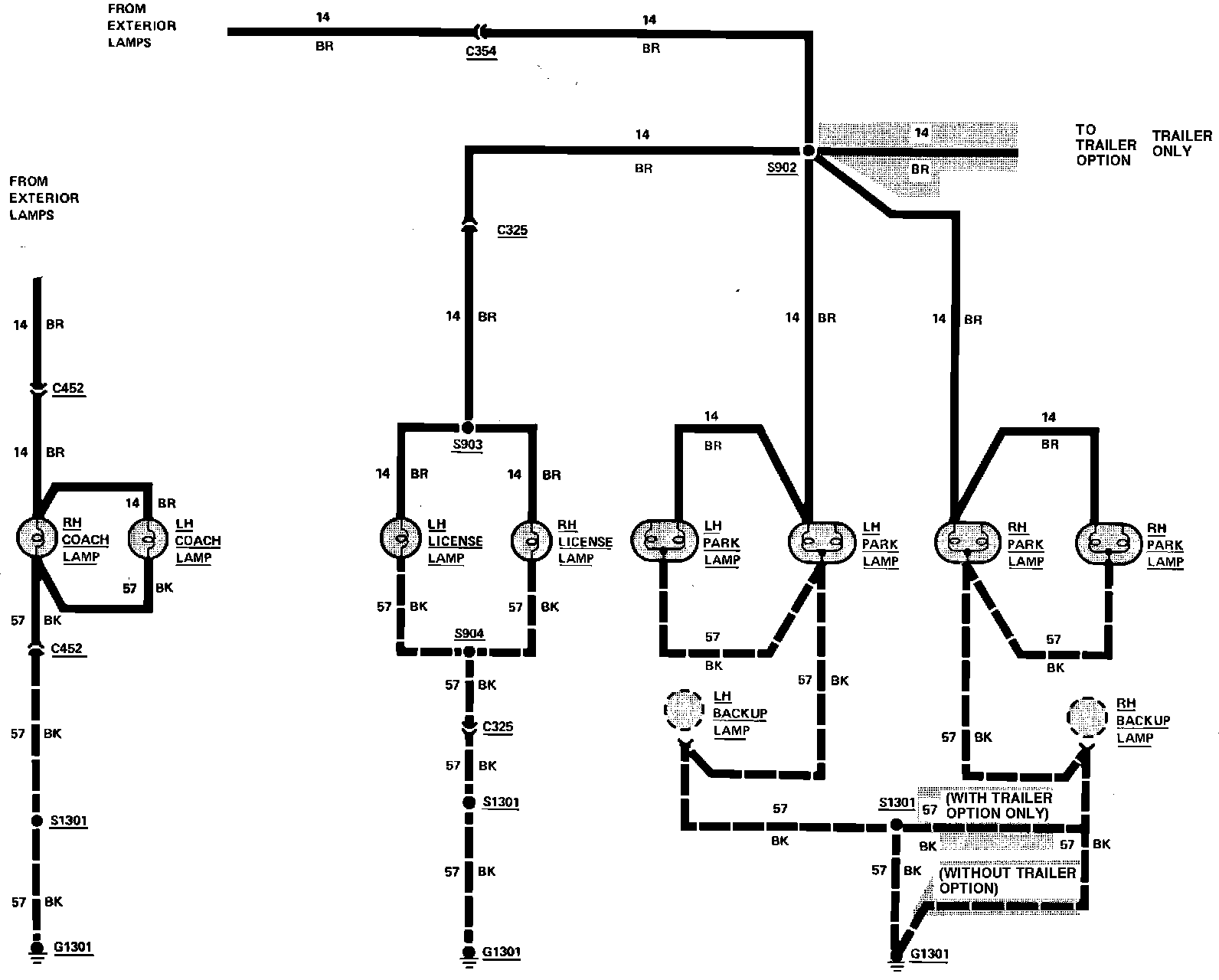

Fig. 61 Rear Exterior Lights Wiring Circuit. Grand Marquis Wagon:
