Home
>>
Mercury
>>
1987
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Climate Control
Electronic Climate Control

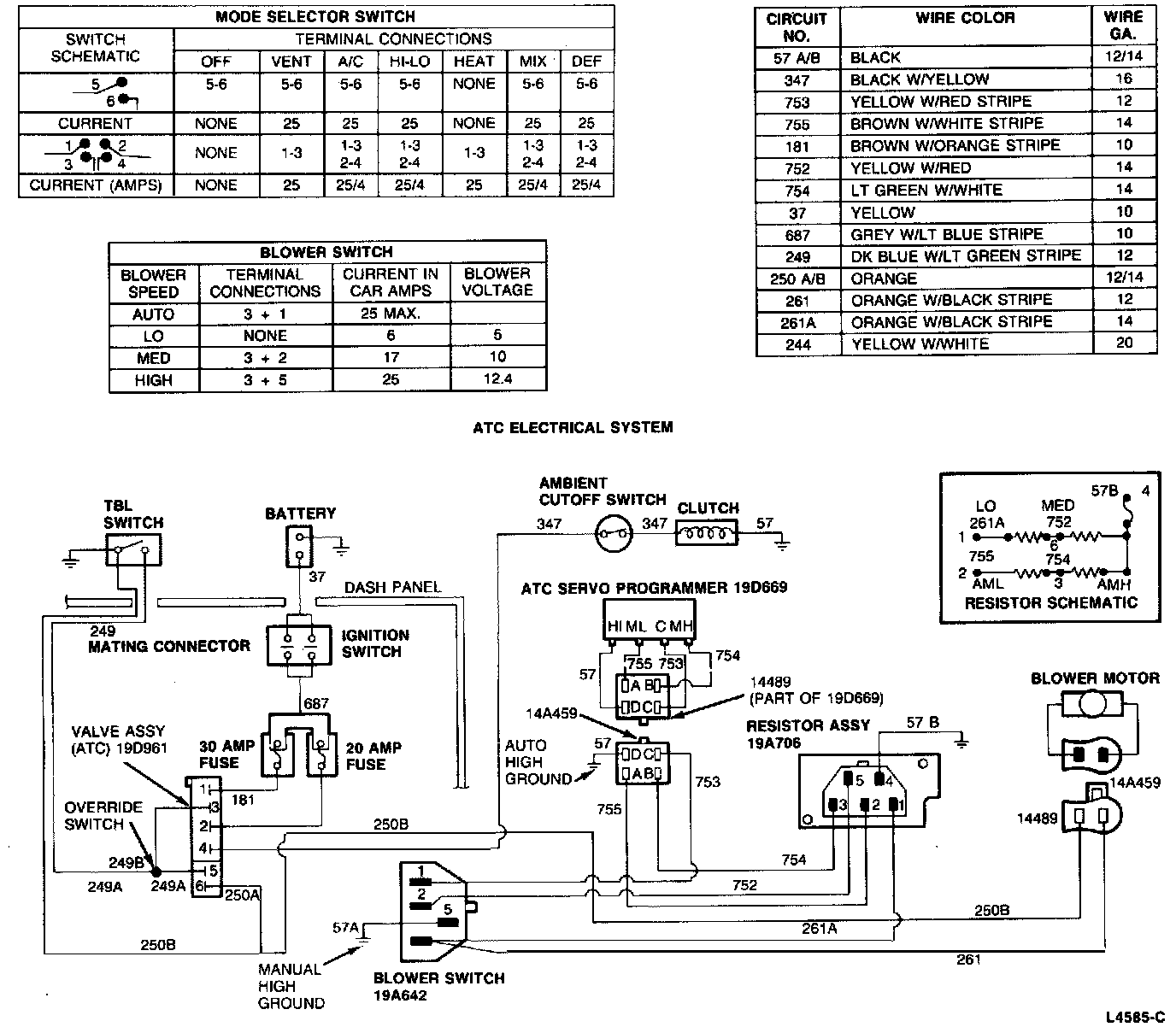

ATC System Electrical Wiring Diagram And Continuity Test:
