Mercury
>>
1987
>>
Grand Marquis V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
Seats

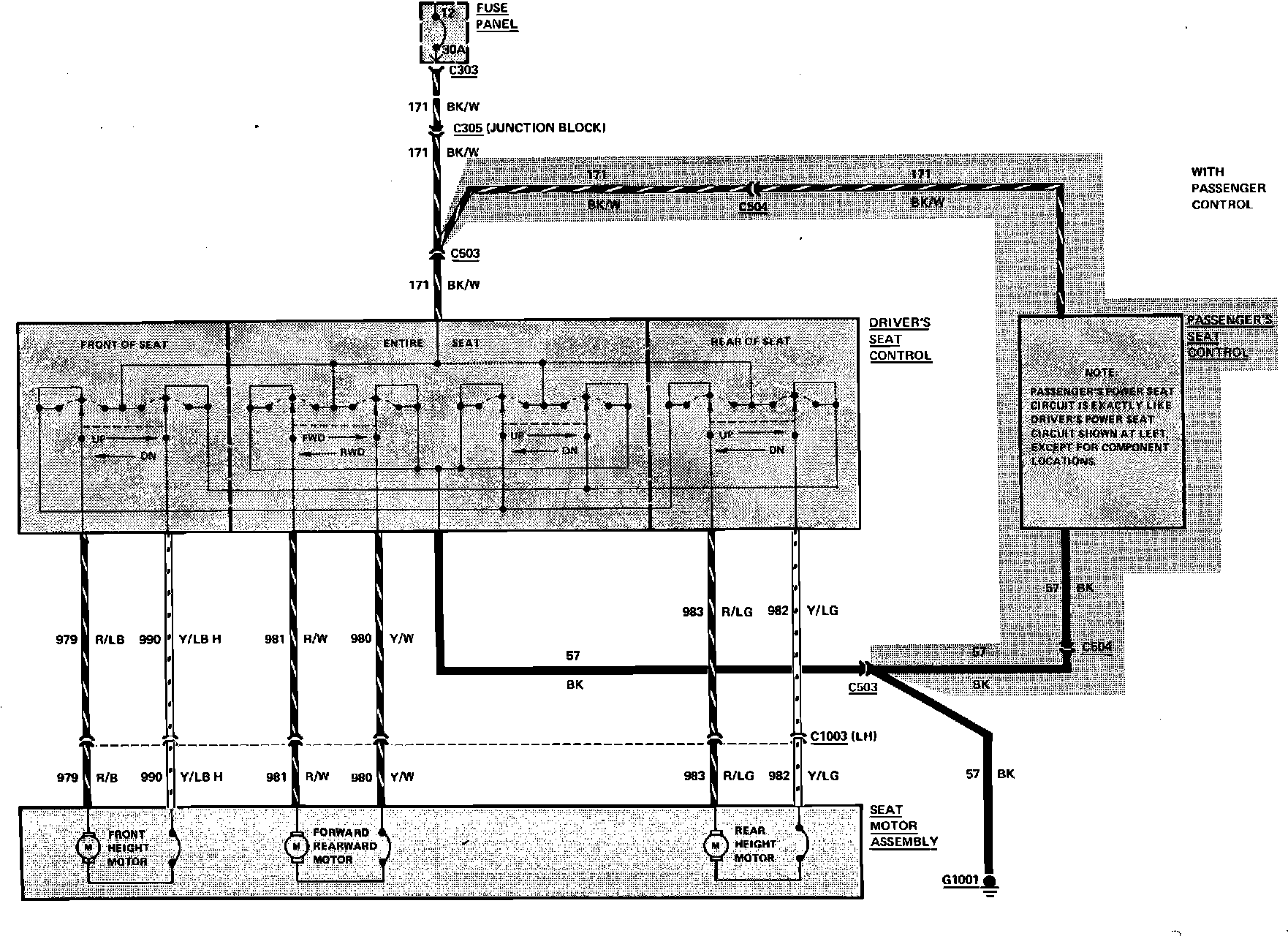

Fig. 49 Power Seat Wiring Circuit:
