Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Interval Wipers
Interval Wipers

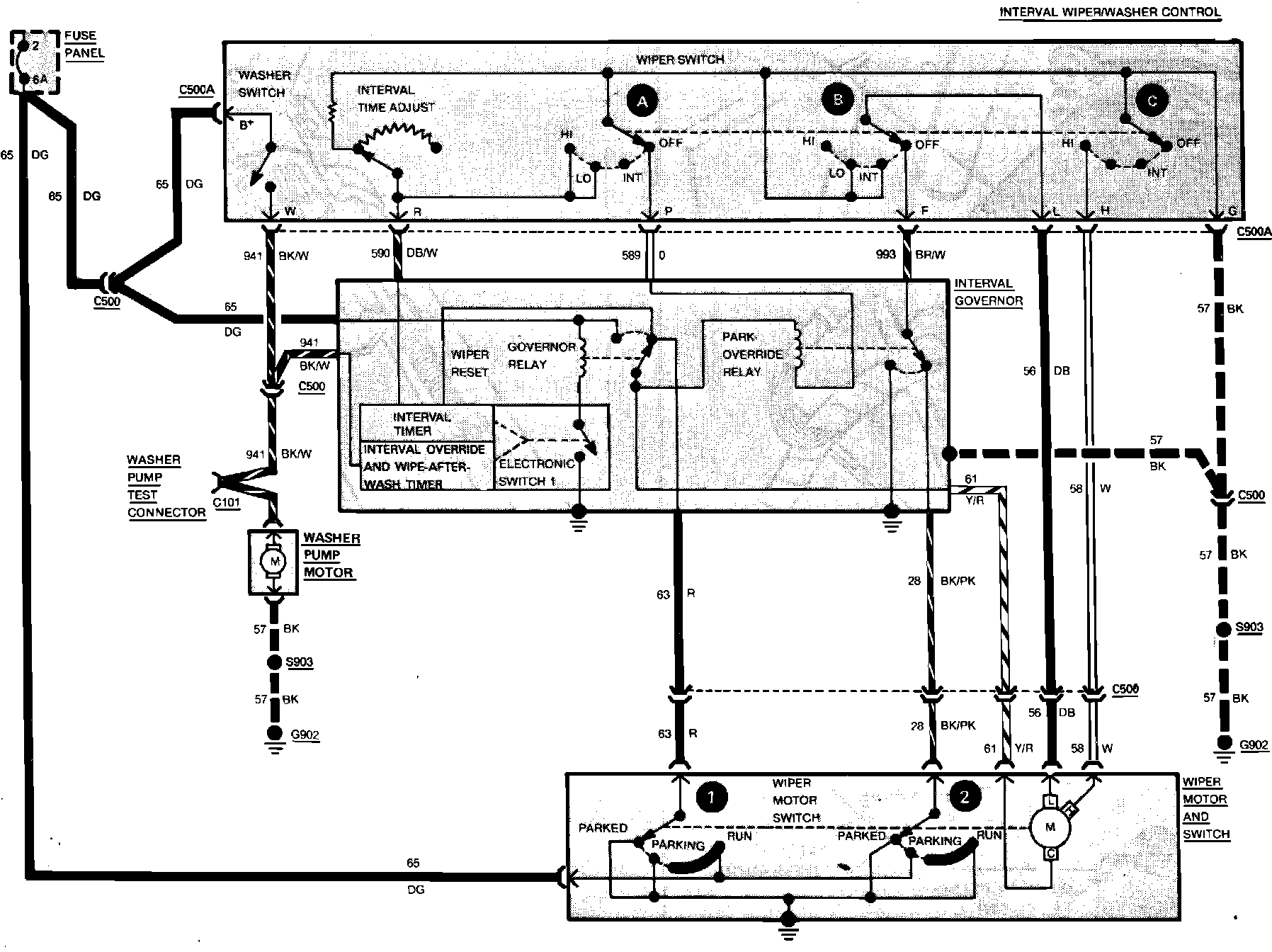

Fig. 83 Windshield Wiper & Washer Wiring Circuit. With Interval:
