Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1987
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KF - Idle Speed Control-DC Motor/Idle Tracking Switch Assembly
>>

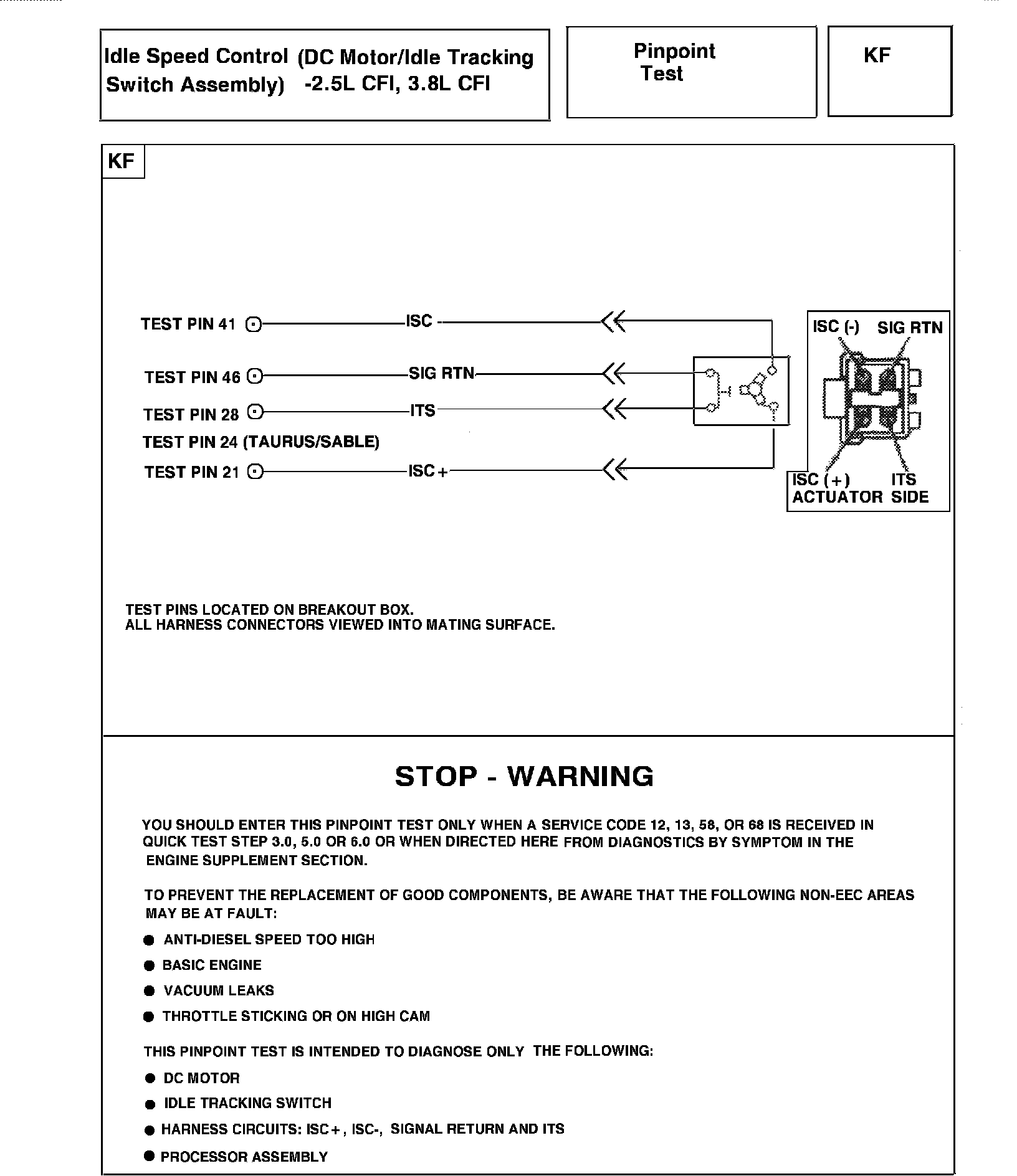

KF - Wiring Diagram
KF - Wiring Diagram
*** UPDATED BY TSB# 90-6B-10
