Mercury
>>
1987
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
Electronic
Electronic

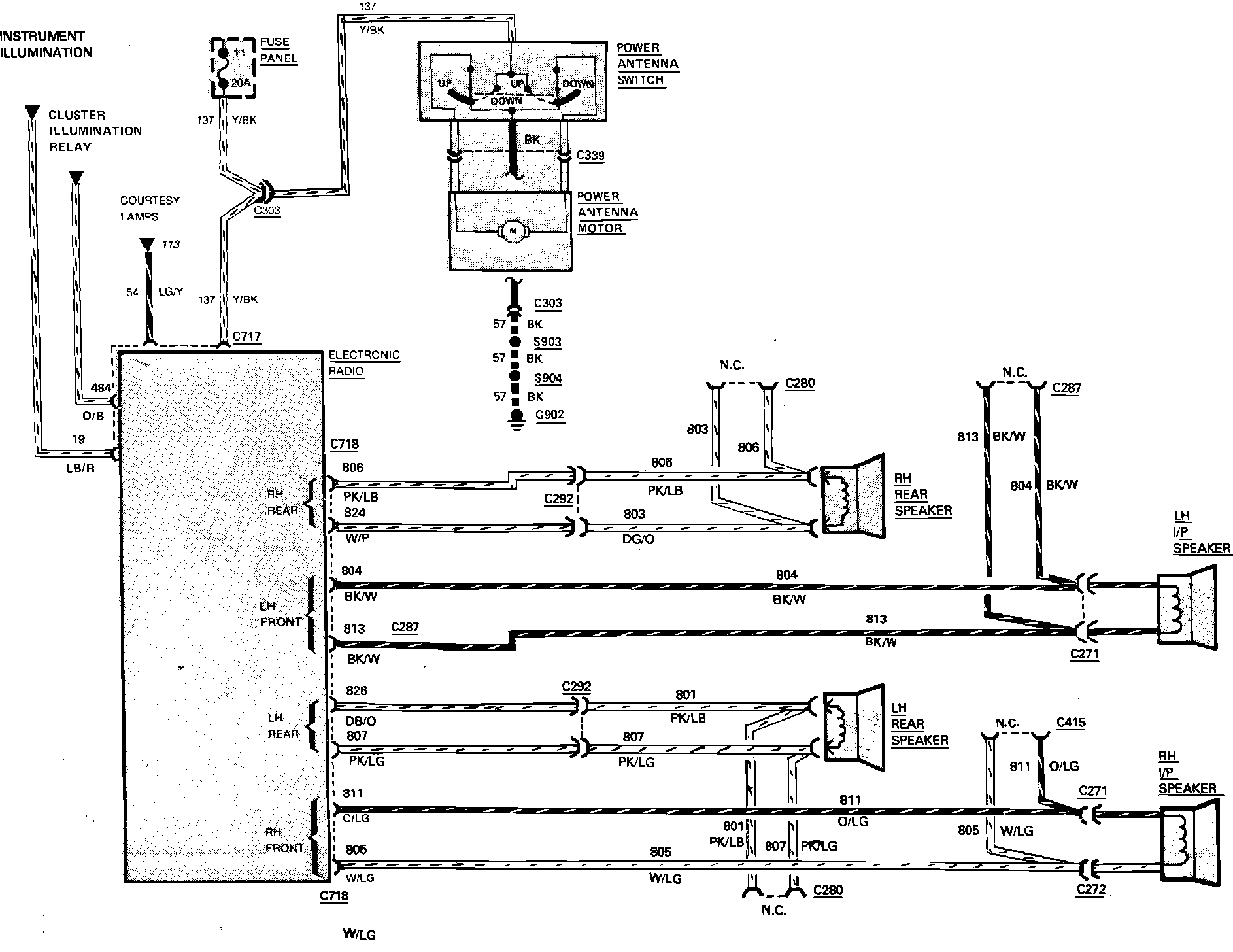

Fig. 73 Radio Wiring Circuit.:
