G206 Standard Production
G206 Standard Production

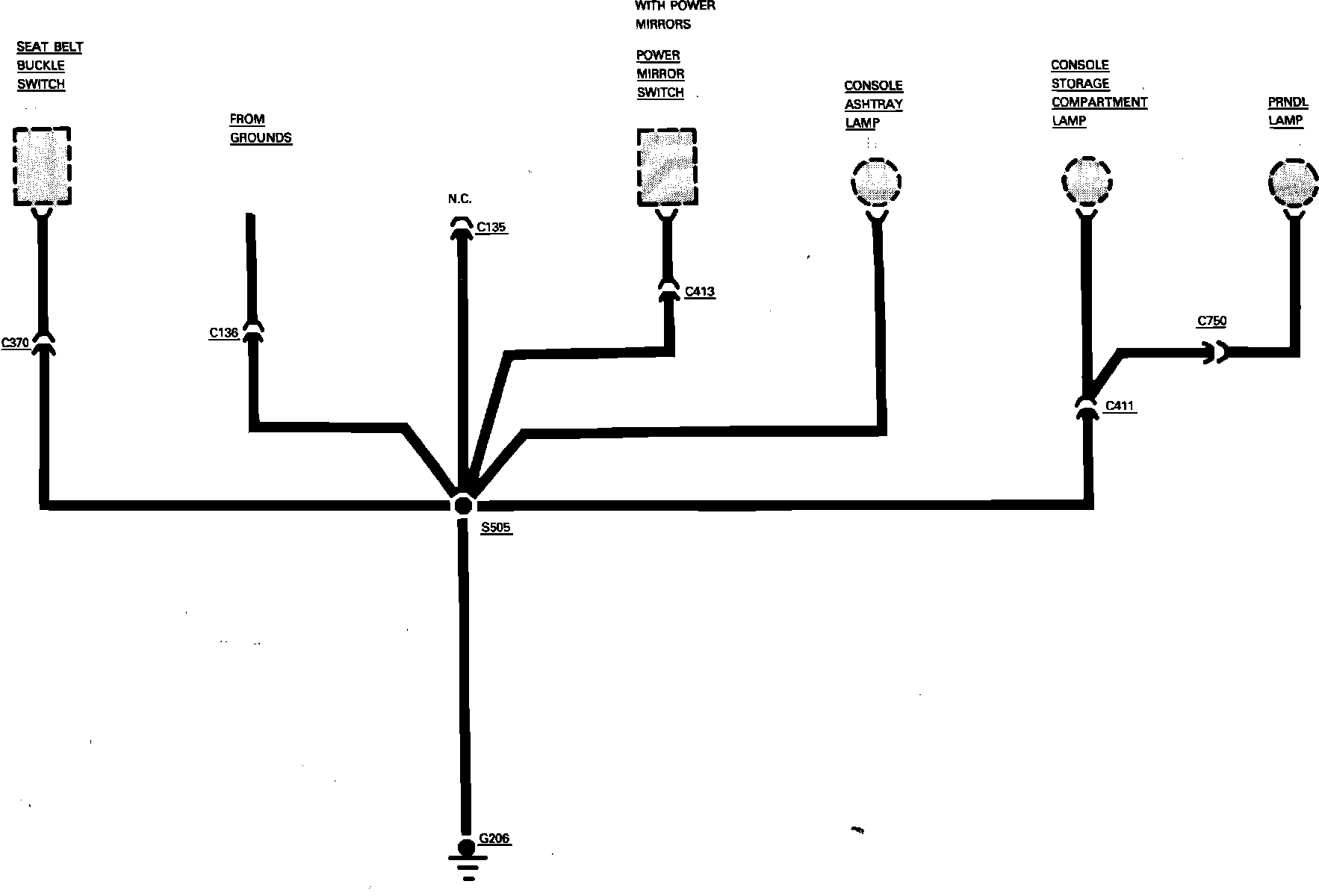

Fig. 30 Ground Distribution. G206 (Standard Production):
