Heated Glass Element
>>
W/Electronic ATC
W/Electronic ATC

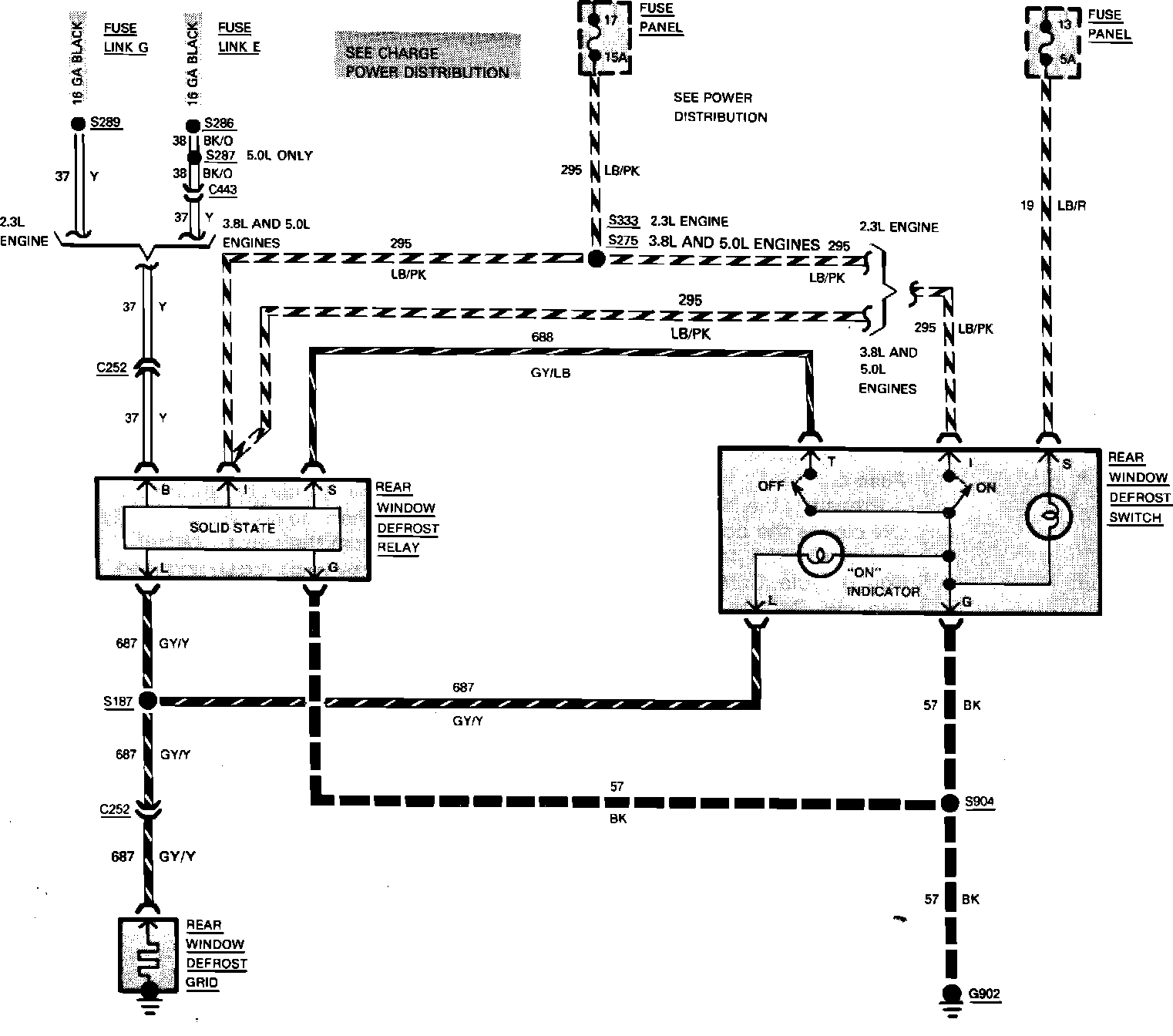

Fig. 76 Rear Window Defroster Wiring Circuit:
